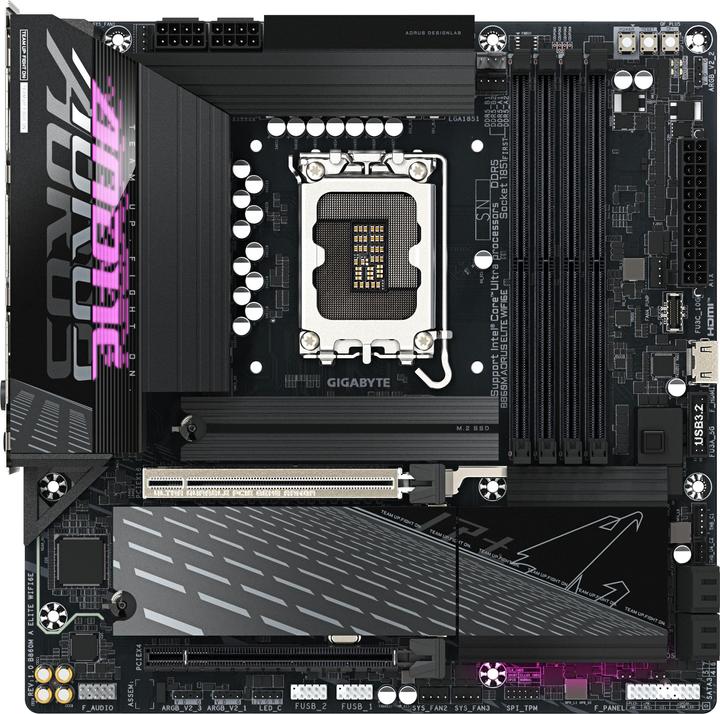

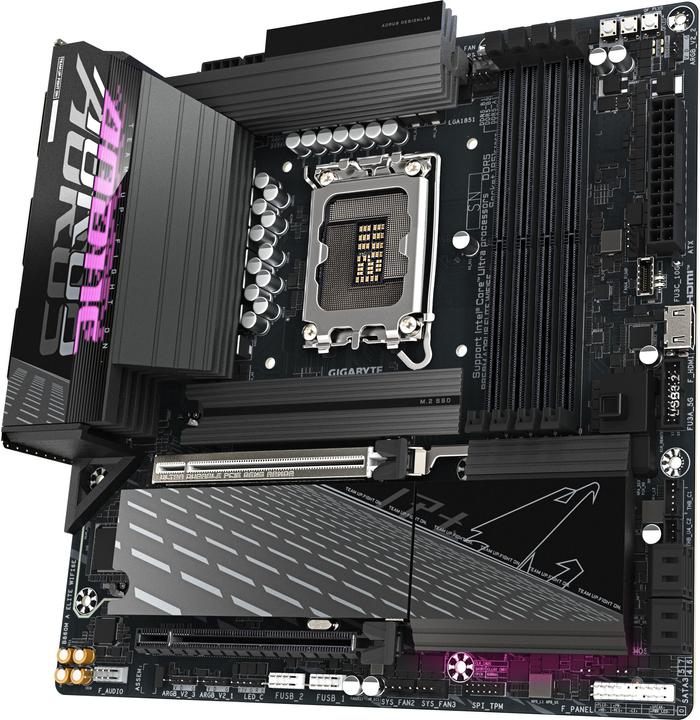

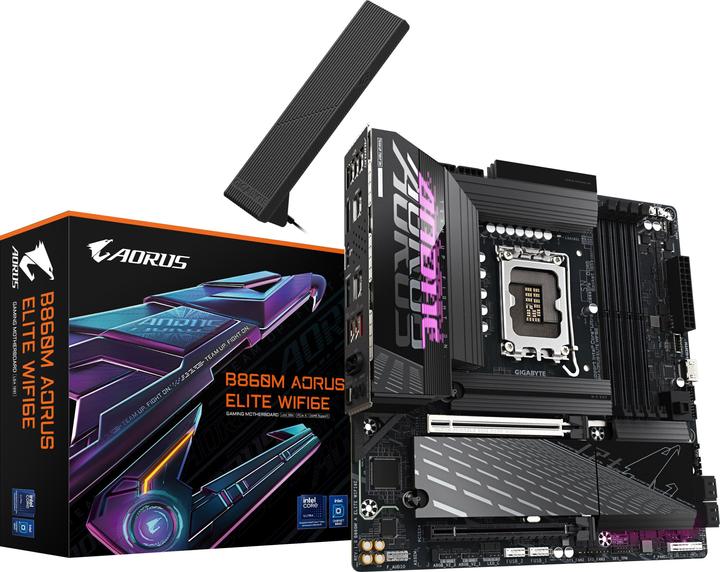

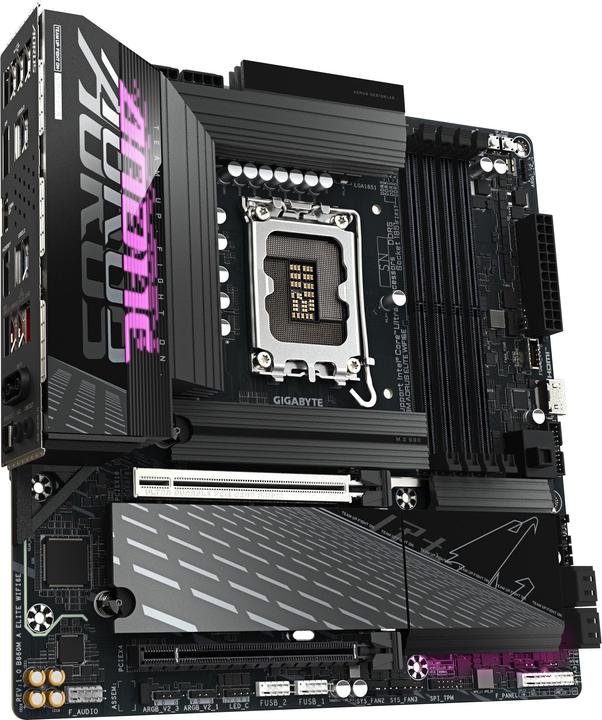

Gigabyte B860M AORUS ELITE WIFI6E

LGA 1851, Intel B860, mATX
Price in EUR including VAT
Ratings
BrandMore from Gigabyte
Delivered Sat, 5.7.
Only 2 pieces in stock
free shipping

Product details

Boost the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative design and state-of-the-art functions, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
4-pin PWM (2x), M.2 PCIe (3x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header, Trusted Platform Module
Item number
53918388

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B860M A ELITE WIFI6E
Release date
8.1.2025

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1851
Chipset
Intel B860
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header, Trusted Platform Module
Operating system compatibility
Windows
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
9200 MHz
Supported memory speed
5600 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
DisplayPort 2.1, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Digital Audio Out (1x), Jack 3.5mm (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
4-pin PWM (2x), M.2 PCIe (3x), S-ATA III (4x)
Expansion slot
PCI Express x16 (1x), PCI Express x4 (1x)
PCI express version (max.)
5
Number of fan connector
2

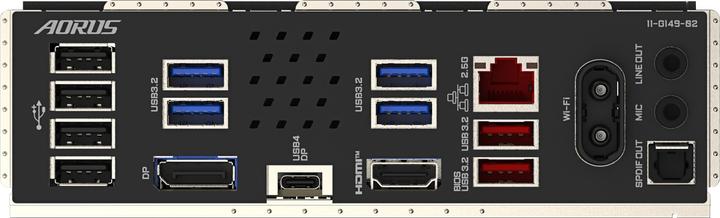

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
244 mm
Width
244 mm
Height
35 mm
Weight
1690 g

Package dimensions

Length
27 cm
Width
27 cm
Height
7 cm
Weight
2 kg
