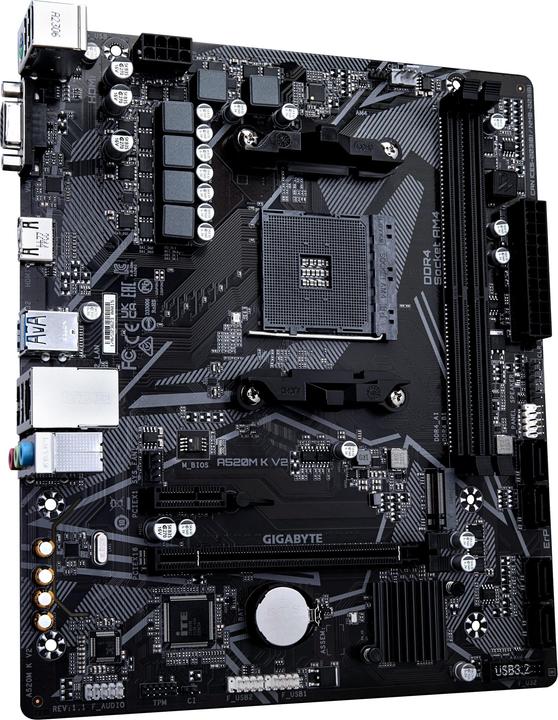

Gigabyte MB GBT AMD AM4 A520M K V2 1.0
AM4, AMD A520, mATXPrice in EUR including VAT
free shipping
Enhance your computer's performance with GIGABYTE's proven motherboard series: AORUS, AERO, and GIGABYTE. With innovative design and cutting-edge features, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator, or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
Processor family | AMD 3000 Series, AMD 4000 Series, AMD 5000 Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Mainboard features | Clear CMOS Button, Front panel audio connector, Trusted Platform Module |
Item number | 25033893 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | A520M K V2 |
Release date | 17.7.2025 |
External links |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD A520 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Trusted Platform Module |
Operating system compatibility | Linux, Windows |
BIOS type | UEFI AMI |
Processor family | AMD 3000 Series, AMD 4000 Series, AMD 5000 Series |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5100 MHz |
Supported memory speed | 1600 MHz, 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | D-Sub (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek GbE |
Max. port speed | 1 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security, Sata Cables |
Length | 198 mm |
Width | 233 mm |
Height | 35 mm |
Weight | 3 g |
Length | 28 cm |
Width | 24.20 cm |
Height | 5.50 cm |
Weight | 659 g |
