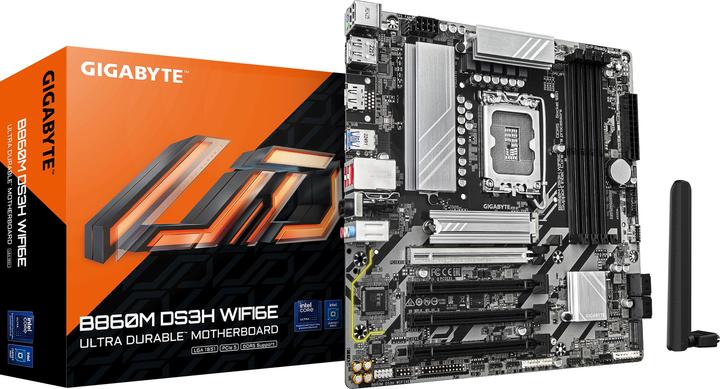

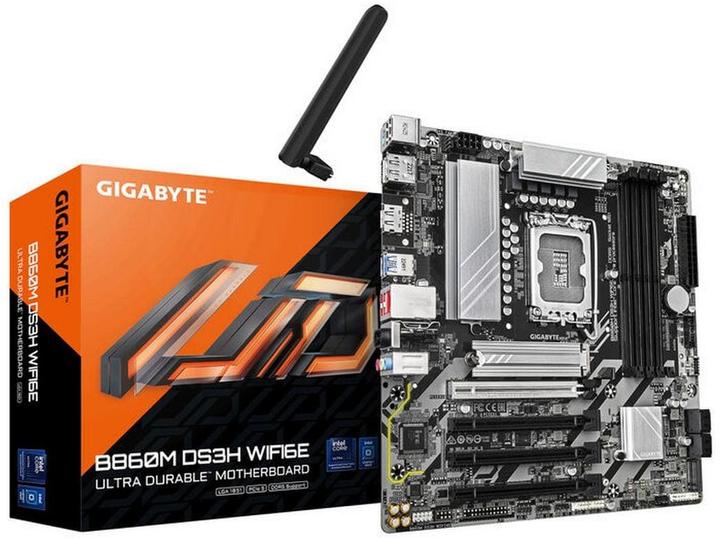

Gigabyte MB GBT Intel 1851 B860M DS3H WIFI6E
LGA 1851, Intel B860, mATXOnly 1 piece in stock at supplier
Product details

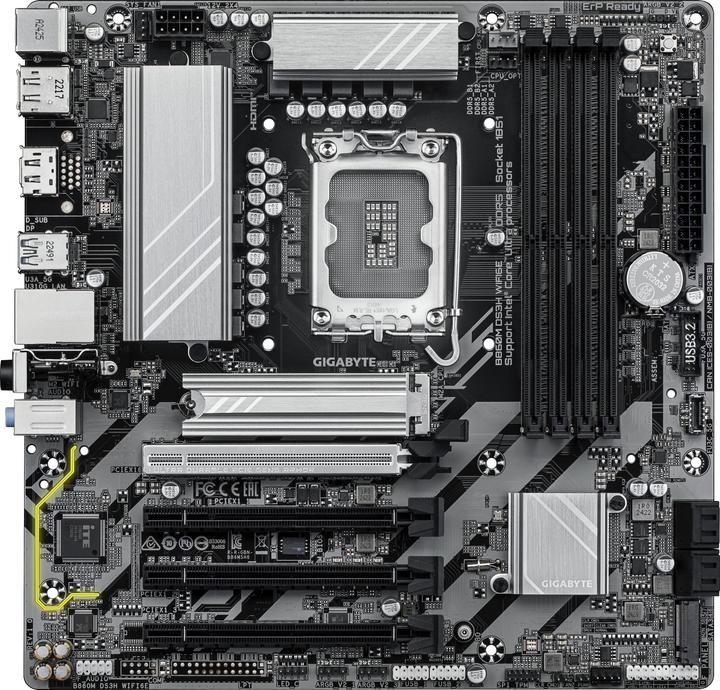

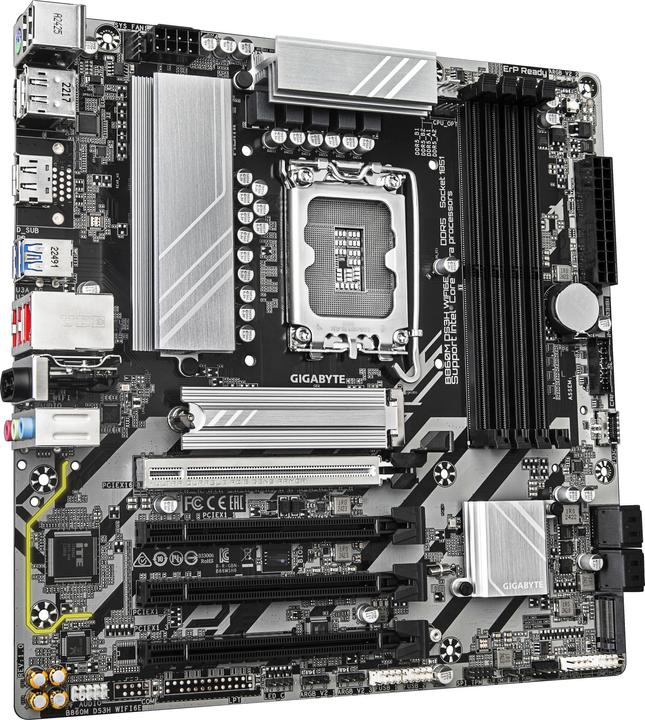

The Gigabyte B860M DS3H WIFI6E is a powerful Micro-ATX motherboard designed for the latest Intel Core Ultra processors of the 2nd generation. With the LGA1851 socket and Intel B860 chipset, it provides a solid foundation for demanding applications and gaming. The motherboard supports up to 256 GB of DDR5 RAM and enables high memory speeds of up to 9066 MHz. It features multiple expansion slots, including PCIe 5.0 and PCIe 4.0, as well as numerous connectivity options for mass storage and peripherals. The integrated Wi-Fi and Bluetooth technology ensures a reliable wireless connection, while the HDMI and DisplayPort connections allow for flexible video output. This motherboard is ideal for users who value performance, reliability, and modern features.
- Supports up to 256 GB of DDR5 RAM with speeds up to 9066 MHz

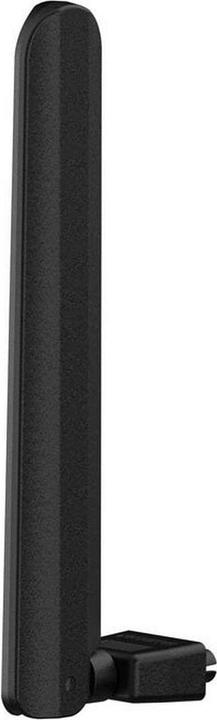

- Integrated Wi-Fi and Bluetooth 5.3 technology for wireless connectivity
- Variety of connectivity options, including 4 SATA-600 and 2 M.2 interfaces
- Expansion slots: 1x PCIe 5.0 and 3x PCIe 4.0 for additional hardware
- HD audio with 8-channel support for an enhanced sound experience.
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Item number | 53918377 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B860M DS3H WIFI6E |
Release date | 8.1.2025 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1851 |
Chipset | Intel B860 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 9066 MHz |
Supported memory speed | 5600 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

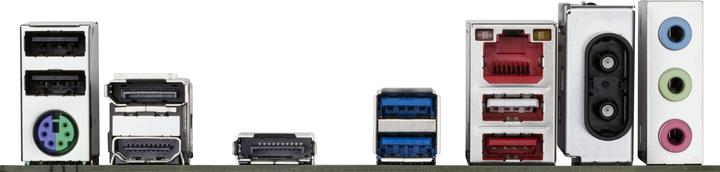

Video connections | DisplayPort (2x), HDMI (1x) |
Video connection version | DisplayPort 2.1, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (1x), Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (3x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 4-pin Molex, 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton® Internet Security (OEM version) |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1100 g |
