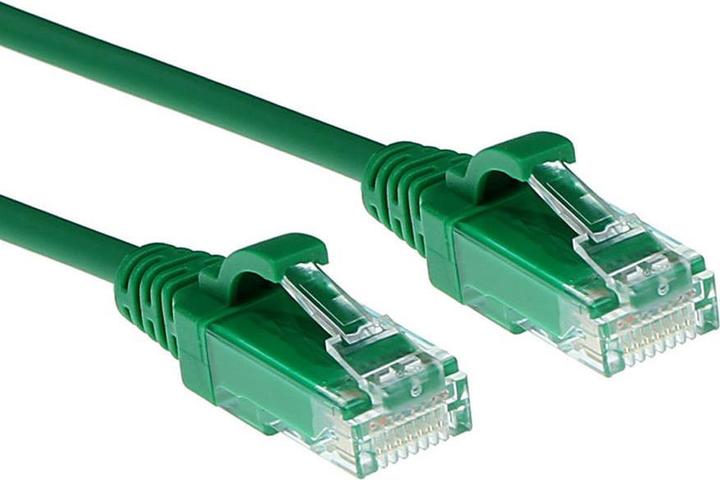

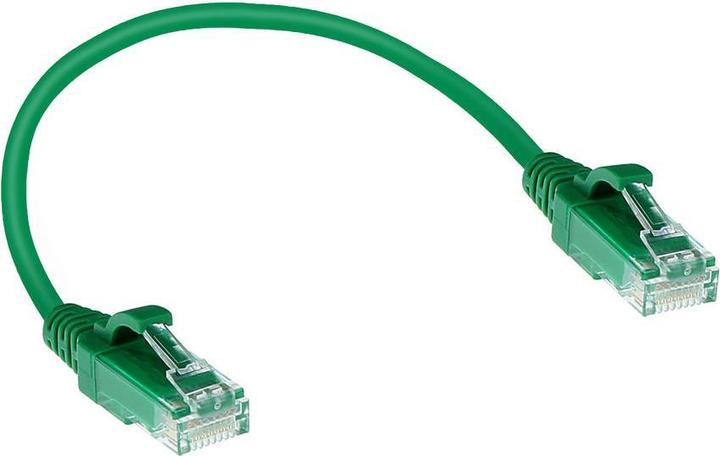

Green 0.15 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors
U/UTP, CAT6, 0.15 mMore than 10 pieces in stock at supplier
Product details
CAT6 U/UTP Slimline Ethernet cables for data centers have a smaller diameter (3.8 mm compared to 5.9 mm) than regular CAT 6 patch cables. The bend radius is also smaller compared to standard patch cables. All of this results in better airflow in the server or network cabinet.
Although ISO/IEC and TIA standards specify the use of patch cables between 22 and 26 AWG, it is possible to use patch cables with 28 AWG. This leads to higher attenuation, especially at higher frequencies.
ACT recommends a maximum bundle size of 24 cables for PoE applications. In this case, the temperature of the cables supplying PoE does not increase. The ANSI TSB-184-A standard limits the maximum temperature rise for the average cable in a bundle to less than 15 degrees Celsius above the ambient temperature.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 24068084 |
Publisher | ACT |
Category | Network cables |
Manufacturer no. | DC9730 |
Release date | 5.2.2023 |
Cable colour | Green |
Material | Low-smoke halogen-free (LSZH) |
Material of the isolation | LSZH |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | Round |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 28 |
Frequency | 250 MHz |
Temperature range | 20° - 60° C |
Patch cable type | Copper cable |
Patch cable Features | Slim |
Cable category | CAT6 |
Contact assignment | straight |
Shield | U/UTP |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | CAT6 U, Network cabinet. |
Diameter | 3.80 mm |
Length | 0.15 m |
Width | 3.80 mm |
Product Safety |
