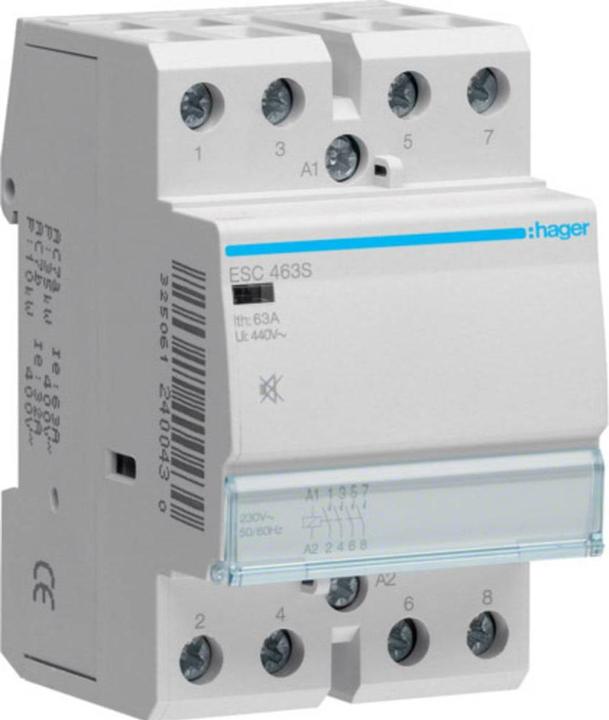

Hager Contactor ESC463S
Manufacturer: Hager
Designation: Buzz-free Contactor 63A 4P 230V
Type: ESC463S
Rated operational voltage: 400 V
Rated operational current: 63 A
Usage category according to EN IEC 60947-4-1: AC-7a/AC-7b
Rated control voltage: 230 V
Type of operational voltage: AC
Type of control voltage: AC
Number of contacts as normally open: 4
Max. incandescent lamp load: 6500 W
Max. fluorescent lamp load: 3000 VA
Max. fluorescent lamp load (Duo circuit): 4700 VA
Max. fluorescent lamp load (parallel compensated): 2100 VA
Manual control slider: no
Width in modular units: 3
Installation depth: 60 mm
Additional devices possible: yes
With day/night function: no
Buzz-free: yes
Protection class (IP): IP2X

Hager Contactor ESC463S: additional details
Buzz-free installation contactor 63A 4 normally open contacts 230V. Buzz-free contactor according to DIN EN 61095 (VDE 0637-3) with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. DC magnetic system with protection circuit against overvoltage and to limit interference voltage peaks, ensuring buzz-free continuous operation and low switching noise. Note: When multiple devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.
