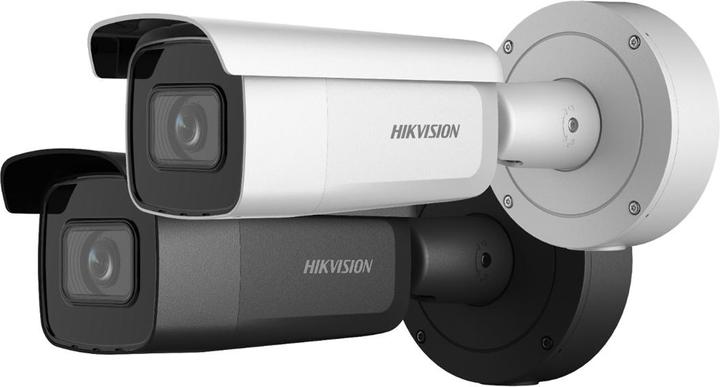

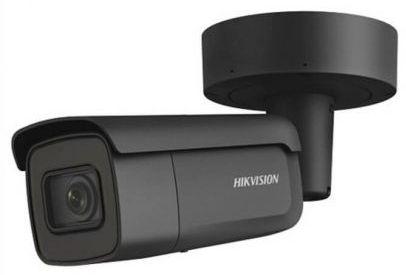

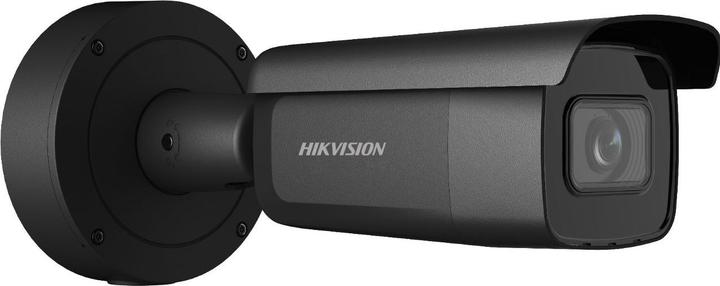

Hikvision DS-2CD2686G2-IZS C

3840 x 2160 pixels
Currently out of stock

Product details

The Hikvision DS-2CD2686G2-IZS C is a state-of-the-art outdoor surveillance camera designed for demanding security applications. With an impressive 8 MP resolution, this camera delivers sharp images and videos in 4K quality. It features a motorized varifocal lens that allows for flexible adjustment of the field of view, ensuring easy installation and monitoring. The camera utilizes Power-by-DarkFighter technology, providing excellent performance in low light conditions, making it ideal for use in various lighting environments. Additionally, the 120 dB True WDR technology ensures clear images even in strong backlight situations. The DS-2CD2686G2-IZS C is also equipped with advanced features for the classification of people and vehicles based on deep learning, and it boasts a robust construction with IP66 and IK10 ratings to withstand weather resistance and vandalism.

  • 8 MP resolution for high-resolution imaging
  • Motorized varifocal lens for flexible monitoring
  • Power-by-DarkFighter technology for excellent low-light performance
  • 120 dB True WDR technology for clear images in backlight
  • Deep learning-based classification of people and vehicles.

Key specifications

Network camera type
Surveillance camera indoor
Network interface
RJ45 port
Power supply
PoE
Lens type
Prime lens
Type of memory
Memory card
Advanced functions
Motion sensorNight vision function
Item number
17735736

General information

Manufacturer
Hikvision
Category
Network camera
Manufacturer no.
DS-2CD2686G2-IZS(2.8-12MM)(C)O-STD/BLACK
Release date
20.11.2021

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Metal

Camera properties

Network camera type
Surveillance camera indoor
Camera design
Bullet camera
Camera resolution
8 Mpx
Max. picture resolution
3840 x 2160 pixels
Viewing angle (H)
108°
Viewing angle (V)
58°
Viewing angle (D)
360°
Lens type
Prime lens
Focal length
2.8 - 12.0 mm
Aperture
f/1.4
Image sensor type
CMOS
Refresh rate
30 FPS
Shutter speed
1/3 - 1/100000 s
Tilt range
0 - 75°
Swivel range
0 - 355°
Advanced functions
Motion sensorNight vision function
Remote access
Web browser
Video file formats
H.264H.264+H.265H.265+MJPEG
Audio formats
AACG.711G.726MP2L2PCM
Protection type (IP code)
IP66

Connections

Connection A
RJ45

Data storage properties

Memory card type
microSDmicroSDHCmicroSDXC
Type of memory
Memory card

Network

Network interface
RJ45 port
Max. port speed
100 Mbit/s

Smart home features

Smart Home
Not compatible

Application range

Installation place
CeilingWall
Application range
Network

Power supply

Power supply
PoE
PoE Standard
802.3at (PoE+)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
144 mm
Width
345.70 mm
Weight
1430 g

Package dimensions

Length
38.60 cm
Width
19.70 cm
Height
18.70 cm
Weight
2.33 kg
