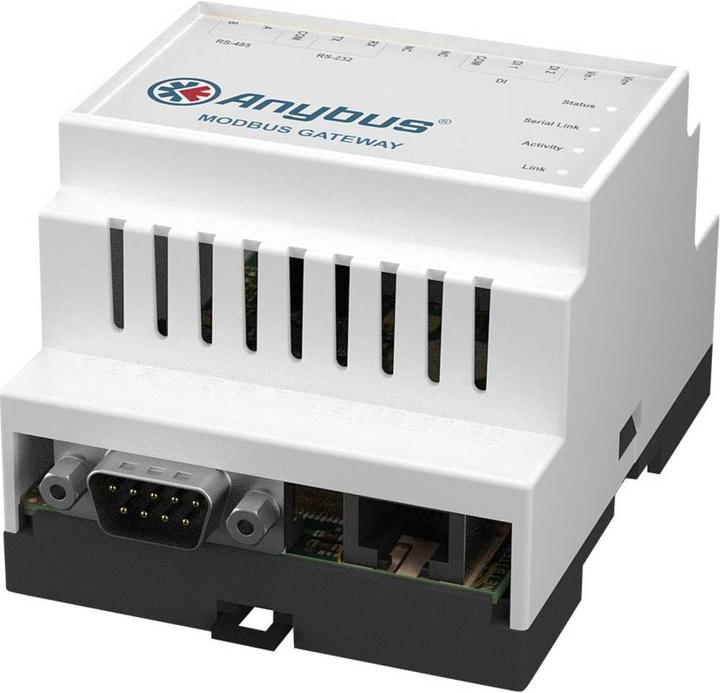

HMS Gateway LAN, Modbus, RS-232, RS-485 Anybus AB7702 12 V/DC, 24 V/DC
Only 2 pieces in stock at supplier
Product details

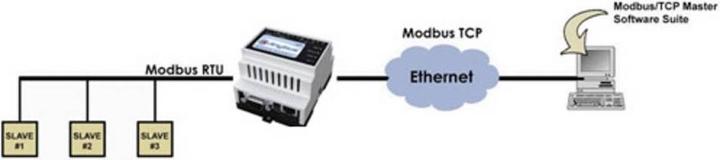

Description Gateway: Modbus-RTU / Modbus-TCP. Transparent data exchange between a Modbus-TCP client (Master) and Modbus-RTU slaves. Acts as a server (Slave) on the Modbus-TCP side. Supports 10/100 Mbit Ethernet (Modbus-TCP). On the Modbus-RTU side, it supports RS-232 and RS-485. Easy configuration (Node Address, IP address, etc.). This Modbus gateway implements a server (Slave) on the Modbus-TCP side. The gateway transparently forwards Modbus-TCP telegrams to the Modbus-RTU slaves connected to it. Requests from a Modbus-TCP client (Master) to the slaves in the Modbus-RTU network are converted by the gateway to Modbus-RTU. Conversely, response telegrams from the Modbus-RTU slaves are also transparently passed through by the gateway for the Modbus-TCP client. Thus, this Modbus gateway allows Modbus-TCP clients to communicate with one or more Modbus-RTU slaves. The physical connection of the Modbus gateway to Modbus-RTU is made via a 9-pin D-sub connector for RS-232 and an RJ12 connector for RS-485. The connection to the Ethernet side (Modbus-TCP) is done via a standard RJ45 connector. Technical specifications: Operating voltage: 9 - 32 V/DC. Operating temperature (range): -40 to 65 °C. Operating temperature (max.): 65 °C. Operating temperature (min.): -40 °C. Product dimensions, width: 86 mm. Product dimensions, height: 70 mm. Type (manufacturer type): AB7702. Additional technical data: Modbus-TCP baud rate: 10 - 100 Mbit/s. Modbus-RTU baud rate: up to 155 kbit/s. Protection class: IP20. Configuration via: IPconfigTool and web browser. Serial interfaces (Modbus-RTU): RS-232, RS-485. Housing: plastic housing (IP20).
Max. port speed | 100 Mbit/s |
Item number | 22430039 |
Manufacturer | HMS |
Category | Network switches |
Manufacturer no. | AB7702 |
Release date | 19.4.2021 |
Max. port speed | 100 Mbit/s |
Max. port speed RJ45 | 100 Mbit/s |
Country of origin | China, Germany |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Length | 7 cm |
Width | 8.60 cm |
Height | 7 cm |
Product Safety |
