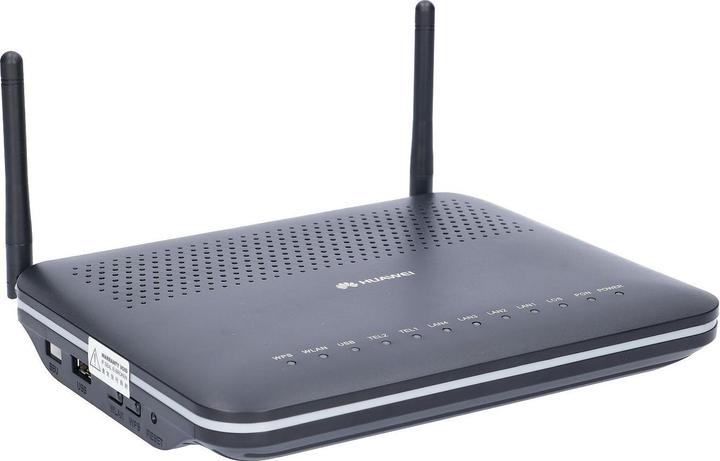

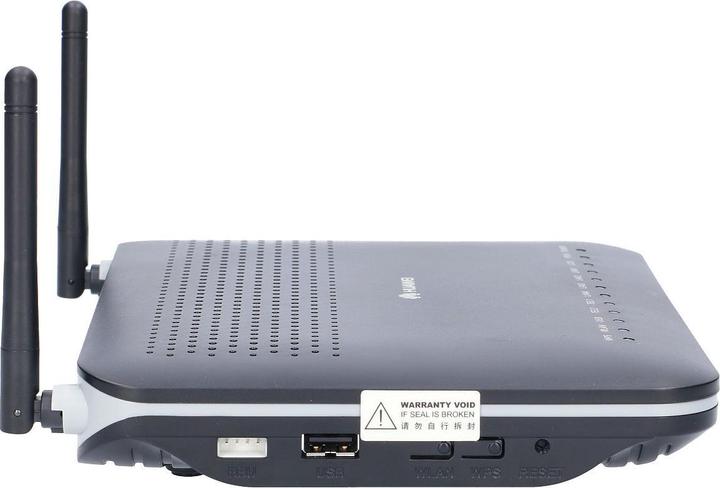

Huawei HG8245 GPON ONU 4xGE 2xPOTS 1xUSB WiFi

The HG8245H is an ONT device designed for FTTH networks. It is equipped with 2 telephone ports, 4 Gigabit Ethernet (LAN) ports, USB, and GPON B+ class connections. The device features an integrated wireless network radio module that complies with IEEE 802.11 b/g/n standards, as well as two antennas with a gain of 2 dBi each.

With WiFi, it is possible to create multiple SSIDs. The terminal is equipped with numerous security features such as a firewall and filtering based on MAC/IP/URL. The technologies used allow for minimized power consumption, with a maximum power consumption of only 15.5 W. Numerous Layer-3 functions and QoS make the HG8245 a very good solution for FTTH networks.

Power supply via 12 V, 2 A (included).

Key features of the HG8245

• GPON connection (Class B+) SC/UPC
• 4 Gigabit Ethernet (LAN) ports
• 2 POTS ports (telephone)
• Wireless network capability, IEEE 802.11b/g/n standards
• Two external antennas with a gain of 2 dBi each
• USB 2.0 port
• Numerous Layer-3 functions, QoS
• Energy efficiency

Number of LAN ports: 4x 10/100BaseTX (RJ45)
PON standard: GPON
Wireless network standards: IEEE 802.11g
Wireless network standards: IEEE 802.11n
Wireless network standards: IEEE 802.11b
USB port: 1x USB
VoIP ports: 2x POTS.
