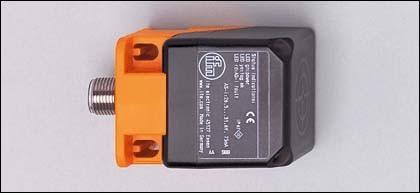

Ifm Electronic read/write head DTA200
Manufacturer: Ifm Electronic
Designation: Read/write head
M12 plug connection
Type: DTA200
Frequency: 125 MHz
Connection for external antenna: No
Type of input voltage: DC
Design of electrical connection: Plug-in connection
Material of housing: Plastic
Width: 40 mm
Height: 40 mm
Depth: 54 mm
Protection class (IP): Other
Ifm Electronic read/write head DTA200: further details
Identification systems, read/write head, rectangular plastic, flush mountable, AS-i, operating voltage: 26.5...31.6 V DC (AS-i), current consumption: ≤ 75 mA, M12 connector, with integrated AS-i slave, profile 7.4, M12 connector, active area can be aligned in 5 positions, material housing: PA (polyamide), EAN: 4021179238243.
Mounting type | Stand-alone |
Width | 40 mm |
Item number | 32078986 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | DTA200 |
Release date | 17.10.2022 |
Material group | Plastic |
Material | Plastic |
Mounting type | Stand-alone |
Number of poles | 1 x |
Nominal voltage | 6 V |
Nominal current | 0.08 A |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 1 piece |
Length | 54 mm |
Width | 40 mm |
Height | 40 mm |
Product Safety |
