ifm Electronic Cylinder sensor
Product details

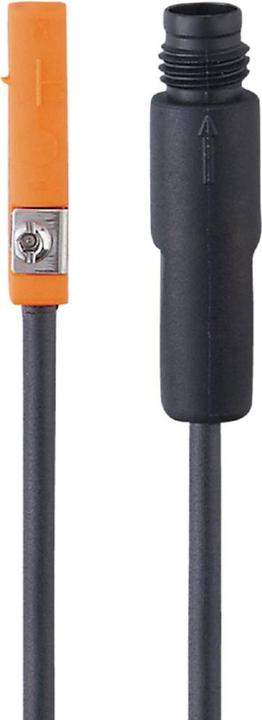

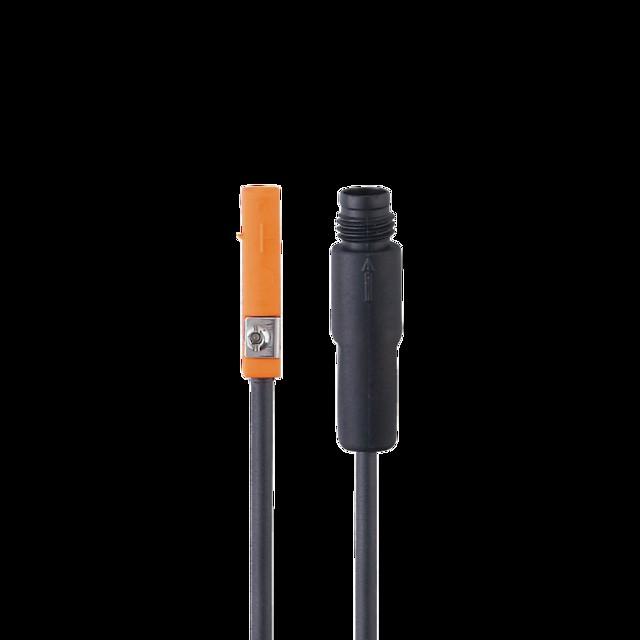

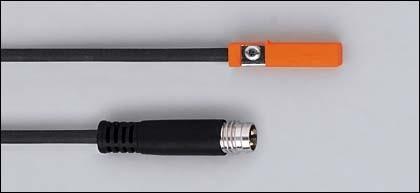

The MK5106 cylinder sensor from ifm Electronic is a highly advanced switch equipped with a GMR cell. This sensor is specifically designed for use in industrial applications and offers reliable detection of metallic targets. With a compact design and a robust plastic housing, the sensor is ideal for flush mounting in T-slot cylinders. It operates with a supply voltage of 10 to 30 V DC and has a current consumption of only 10 mA. The IP67 protection rating ensures that the sensor is protected against dust and water, making it suitable for use in demanding environments. The MK5106 is a normally closed sensor with a semiconductor output and offers easy installation thanks to the connection cable with plug connector. This sensor is an excellent choice for applications that require precise and reliable position detection.
- GMR cell for precise detection of metallic targets
- Compact design for flush mounting in T-slot cylinders
- IP67 protection rating for dust and water resistance
- Operating voltage of 10 to 30 V DC
- Easy installation with connection cable and plug connector.
Number of actuation levels | 1 x |
Width | 5.10 mm |
Item number | 36777354 |
Manufacturer | ifm Electronic |
Category | Buttons + Switches |
Manufacturer no. | MK5106 |
Release date | 28.6.2023 |
Material group | Plastic |
Material | Housing: PA (polyamide), Stainless steel mounting eccentric |
Operating mode | Key |
Number of actuation levels | 1 x |
LED colour | Yellow |
Nominal voltage | 30 V |
Nominal current | 0.01 A |
Protection type (IP code) | IP67 |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Cylinder sensor with GMR cell |
Length | 25.30 mm |
Width | 5.10 mm |
Height | 5 mm |
Product Safety |
