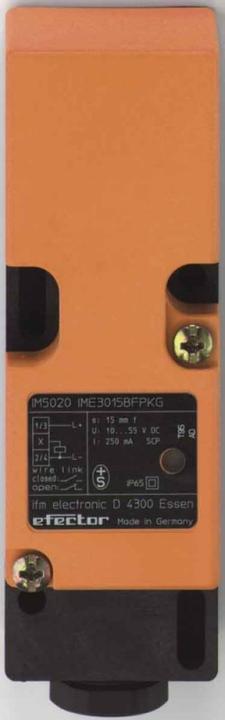

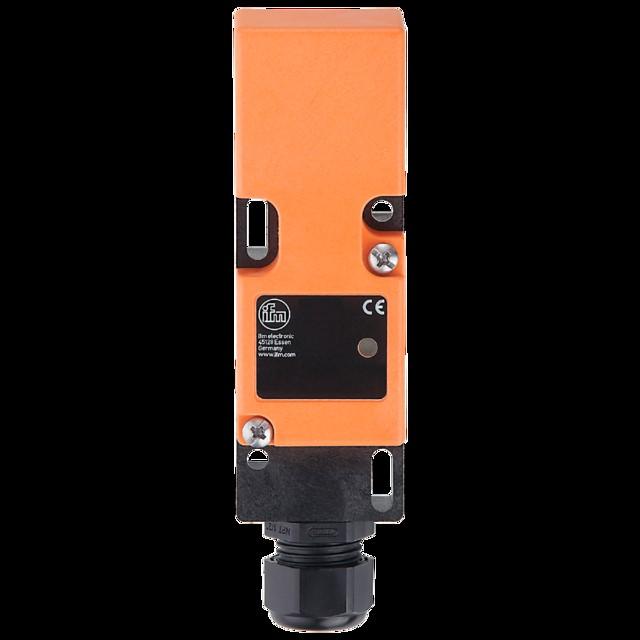

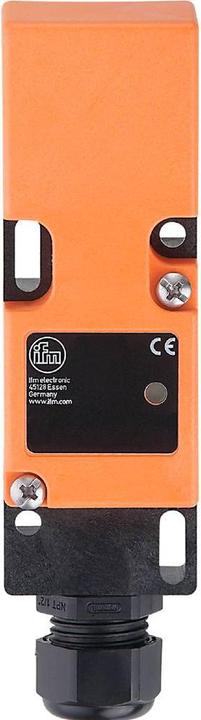

The IFM Electronic inductive sensor IM5020 is a versatile device designed for various applications in automation technology. With a switching distance of 15 mm and the ability to be programmed as a normally open or normally closed contact, this sensor offers flexibility and adaptability. The sensor is housed in a rectangular plastic casing and can be flush-mounted, making it ideal for applications with limited space. The operating voltage ranges from 10 to 36 V DC, and the current consumption is only 15 mA, making it energy-efficient. The sensor is equipped with terminal connections that allow for easy installation and are suitable for cable cross-sections up to 2.5 mm². The IM5020 is therefore a reliable choice for detecting positions or objects in industrial environments.

• Operating voltage of 10 to 36 V DC for flexible application possibilities
• Energy-efficient current consumption of only 15 mA
• Programmable function as normally open or normally closed
• Flush mountable for space-saving installations
• Robust plastic housing for industrial applications.
