IFM IF503A
5 pieces in stock at supplier
Product details

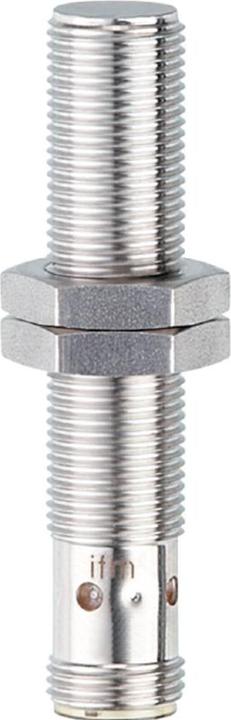

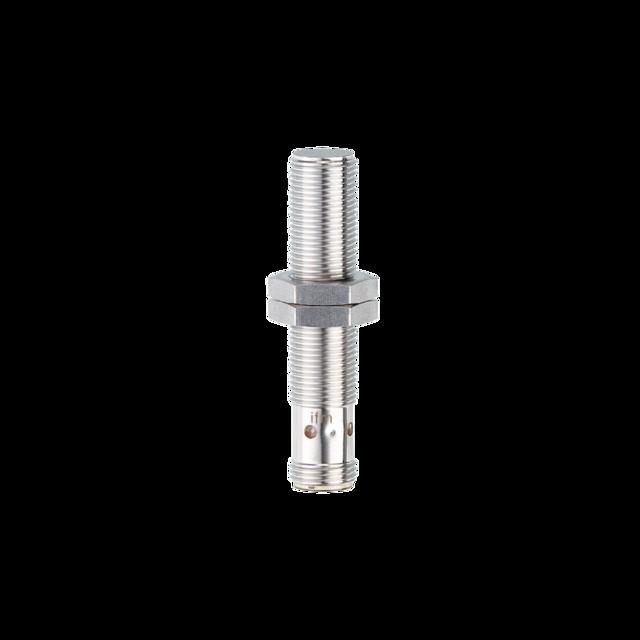

The IFM IF503A is an inductive sensor designed for various applications in automation technology. With a robust all-metal housing and a compact design, this sensor is ideal for use in demanding environments. The sensor has a switching distance of 3 mm and operates with a supply voltage of 10 to 36 V DC. The switching function is configured as a normally open contact, meaning that the sensor activates when an object is detected. The IF503A is equipped with an M12 connector, allowing for easy and secure connections. Thanks to its ATEX certification, the sensor is also suitable for use in explosive atmospheres. The use of high-quality materials, such as stainless steel for the mounting nuts, ensures the product's high durability and reliability.
- Inductive sensor with a switching distance of 3 mm
- Supply voltage of 10 to 36 V DC
- Robust all-metal housing for high durability
- ATEX certification for use in explosive environments
- Easy installation via M12 connector.
Diameter | 12 mm |
Item number | 32079363 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IF503A |
Release date | 17.10.2022 |
Material group | Metal |
Material | V2A (1.4301) V4A (1.4404) PEI fixing nuts: Stainless steel |
Operating mode | Key |
Mounting type | Screw fastening |
LED colour | Yellow |
Number of poles | 3 x |
Nominal voltage | 30 V |
Nominal current | 0.02 A |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 3-wire, All-metal housing, Closers, Current consumption: 20 mA, DC PNP, Flush mountable, Inductive sensor, M12 plug connection, M12 x 1, Metal thread, n.o., Operating voltage: 10..36 V DC, Plug, Switching distance: 3 mm |
Length | 60 mm |
Diameter | 12 mm |
