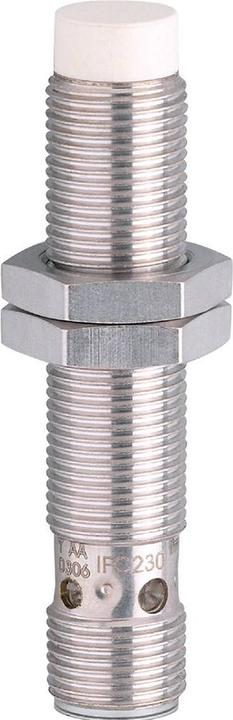

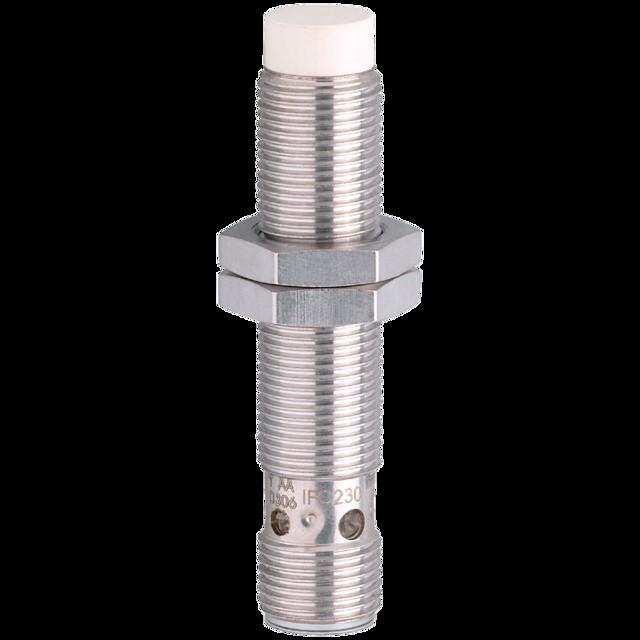

The IFM IF5905 is an inductive sensor designed for various applications in automation technology. With a robust metal housing and an IP67 protection rating, this sensor is ideal for use in demanding environments. The sensor has a switching distance of 7 mm and is equipped with an M12 connector, allowing for easy integration into existing systems. The IF5905 operates with a supply voltage of 10 to 36 V DC and offers a maximum switching power of 250 W. The gold-plated contacts ensure reliable signal transmission and a long device lifespan. This sensor is not flush mountable and is excellent for applications requiring precise switching operations.
Width | 17 mm |
Diameter | 12 mm |
Item number | 32078625 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IF5905 |
Release date | 17.10.2022 |
Material group | Metal |
Material | Active area: LCP, Housing: Brass white-bronze coated |
Operating mode | Key |
LED colour | Yellow |
Nominal voltage | 30 V |
Nominal current | 0.25 A |
Max. Switching capacity | 250 W |
Protection type (IP code) | IP67 |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Radio frequency | 800 Hz |
Items per sales unit | 1 Piece |
Scope of delivery | Inductive sensor, M12x1 |
Width | 17 mm |
Height | 62 mm |
Diameter | 12 mm |
Product Safety |
