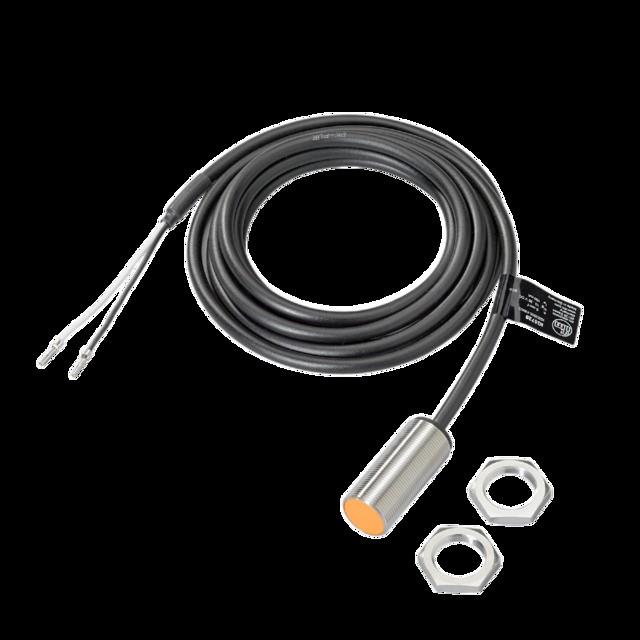

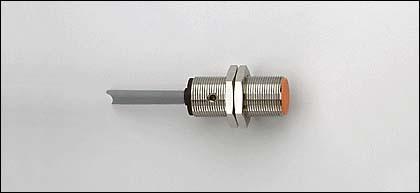

The IFM IG5717 is an inductive sensor designed for various applications in automation technology. With a diameter of 18 mm and a length of 44 mm, this sensor is ideal for flush mounting. It operates with a supply voltage of 10 to 36 V DC and offers a switching frequency of up to 720 Hz. The IG5717 is equipped with a PNP/NPN switching output, allowing for reliable switching functionality as a normally open contact. The sensor is made of high-quality brass with a white bronze-coated surface, giving it high robustness. It is not suitable for safety-related functions and does not provide monitoring for downstream devices. The connection is made via a 2 m long PVC cable, facilitating easy integration into existing systems.

• Inductive sensor with a switching distance of 5 mm
• Flush mountable with a metal housing
• Operating voltage of 10 to 36 V DC
• Switching frequency of up to 720 Hz
• Switching output type: PNP/NPN.
