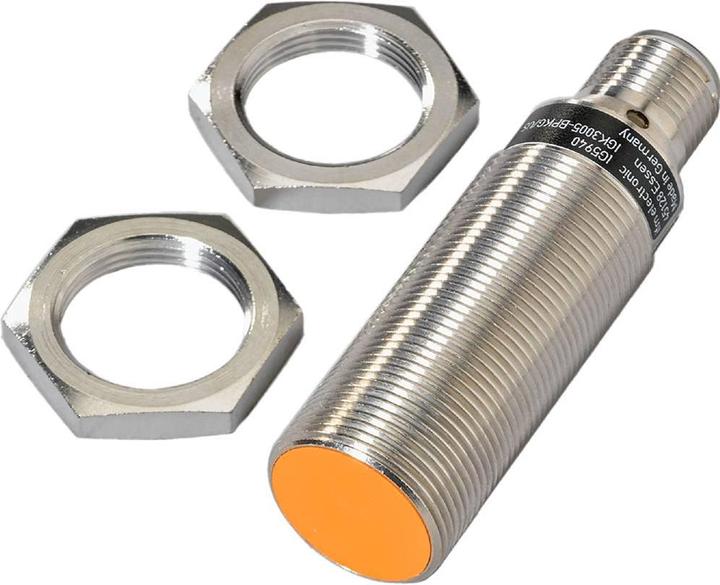

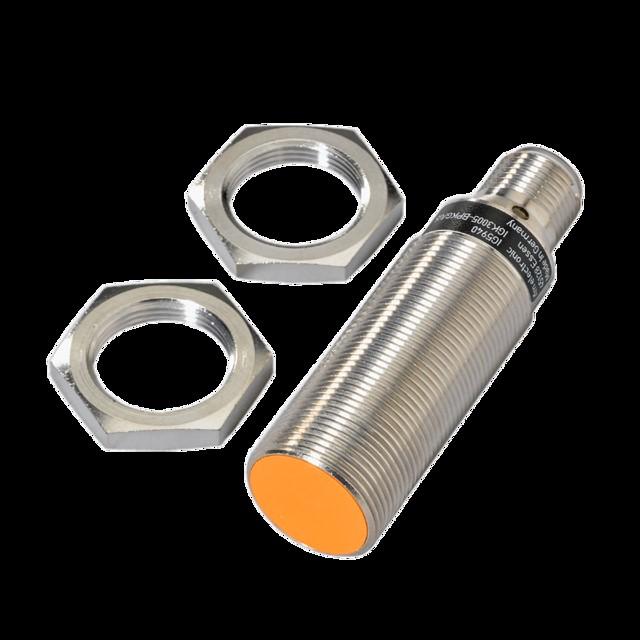

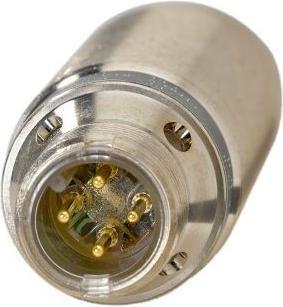

The IFM IG5940 is an inductive sensor designed for a variety of applications in automation technology. With a cylindrical housing and a diameter of 18 mm, this sensor offers a compact design that is ideal for flush mounting. The sensor has a length of 60 mm and is made of high-quality metal, giving it high robustness. The switching distance is 5 mm, allowing for precise object detection. The IG5940 operates with a supply voltage of 10 to 30 V DC and has a maximum output current of 250 mA. The switching frequency of up to 500 Hz ensures a fast response time, making it a reliable choice for industrial applications. The sensor is equipped with an M12 connector, which allows for easy installation and integration into existing systems. The IG5940 is a proven product from IFM, known for its quality and performance.

• Inductive sensor with a switching distance of 5 mm
• Flush mountable with a cylindrical housing
• Maximum output current of 250 mA
• Operating voltage of 10 to 30 V DC
• High switching frequency of up to 500 Hz.
