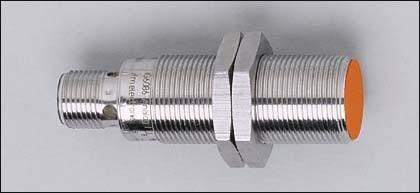

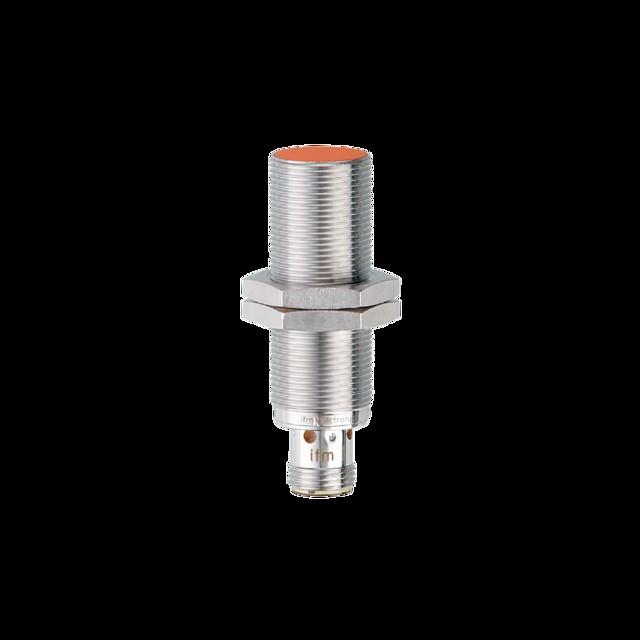

The IFM IG6086 is an inductive sensor specifically designed for precise applications in automation technology. With an M18x1 thread and a robust cylindrical shape, this sensor offers reliable performance in demanding environments. The IG6086 is designed for flush mounting, allowing for easy integration into existing systems. It operates with a supply voltage of 15 to 30 V DC and has a current consumption of 20 mA. The sensor features an analog output of 4 to 20 mA, with a linear slope of 3.56 mA/mm, enabling precise measurement of the switching distance from 0.5 to 5 mm. The housing is made of brass coated with white bronze, while the active area is made of PBT, enhancing the durability and resilience of the sensor. Therefore, the IG6086 is an excellent choice for applications that require high accuracy and reliability.

• Supply voltage of 15 to 30 V DC
• Analog output of 4 to 20 mA
• Switching distance of 0.5 to 5 mm
• Flush mountable with M18x1 thread
• Robust housing made of white bronze-coated brass.
