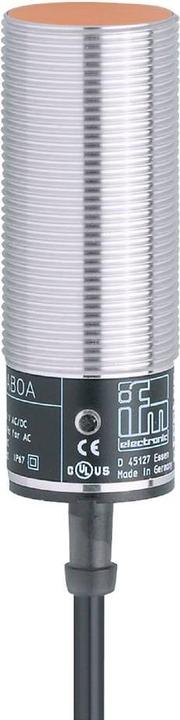

Ifm Electronic Sensor inductive II0051

Manufacturer: Ifm Electronic
Designation: Sensor inductive
Type: II0051
Sensor length: 99 mm
Sensor diameter: 30 mm
Mechanical installation condition for sensor: Flush
Switching distance: 10 mm
Suitable for safety functions: No
Switching function version: NO contact
Switching output version: 2-wire
Type of electrical connection: Axial cable
Number of semiconductor outputs with signalling function: 1
Type of actuation: Metal target
Type of interface: None
Type of interface for safety-related communication: None
Housing design: Cylinder, thread
Coating housing: Other
Cascadable: No
Max. output current at safe output: 350 mA
Supply voltage: 20..250 V
Rated control supply voltage Us at AC 50 Hz: 20..250 V
Rated control supply voltage Us at AC 60 Hz: 20..250 V
Rated control supply voltage Us at DC: 20...250 V
Voltage type: AC/DC
Switching frequency: 50 Hz
With monitoring function of downstream devices: No
Housing material: Metal
Flameproof: No
Explosion protection category for gas: None
Explosion protection category for dust: Without

Further details:
Inductive sensors, Inductive sensor, M30 x 1.5, metal thread, switching distance: 10 mm, flush-mountable, 2-wire, AC/DC, operating voltage: 20...250 V AC/DC, NO contact, Connection cable, 6 m, PVC cable, 2 x 0.5 mm², material housing: brass white bronze-coated, active surface: PBT, EAN: 4021179118989.
