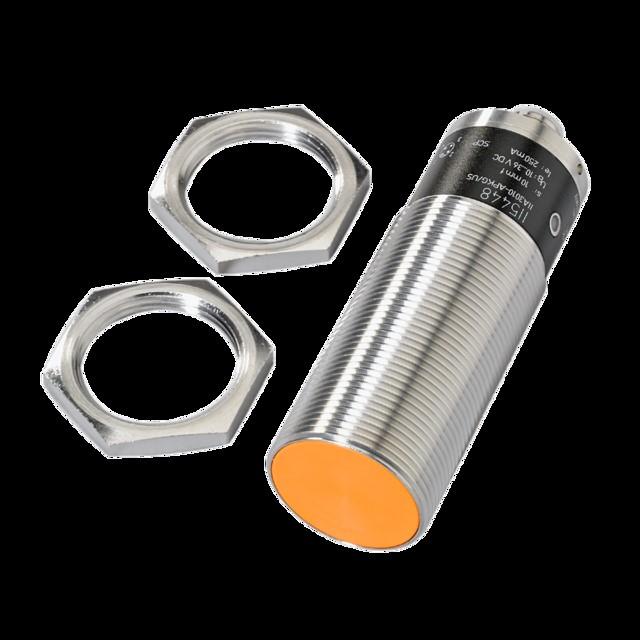

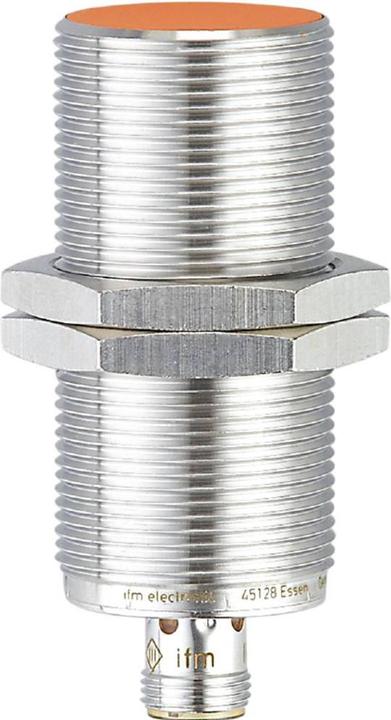

Ifm Electronic sensor, M30x1.5 II5447

Manufacturer: Ifm Electronic
Designation: Sensor, M30x1.5
Type: II5447
Length of sensor: 92 mm
Diameter of sensor: 30 mm
Mechanical installation condition for sensor: Flush
Switching distance: 10 mm
Suitable for safety functions: No
Version of switching function: NO contact
Version of switching output: PNP
Version of electrical connection: M12 plug connector
Number of semiconductor outputs with signalling function: 1
Type of actuation: Metallic target
Design of interface: Without
Design of interface for safety-related communication: Without
Housing design: Cylinder, thread
Coating of housing: Nickel-plated
Cascadable: No
Max. output current at the safe output: 250 mA
Supply voltage: 10..36 V
Rated control supply voltage Us at DC: 10..36 V
Voltage type: DC
Switching frequency: 250 Hz
With monitoring function of downstream devices: No
Material of housing: Metal
Pressure-resistant: No
Explosion protection category for gas: None
Explosion protection category for dust: None

Inductive sensors, M30 x 1.5, Metal thread, Switching distance: 10 mm, Flush mountable, 3-wire, DC PNP, Operating voltage: 10...36 V DC, Current consumption: 15 mA, Normally open contact, Plug connection, M12 plug connection, Housing material: Nickel-plated brass PBT, EAN: 4021179125918.
