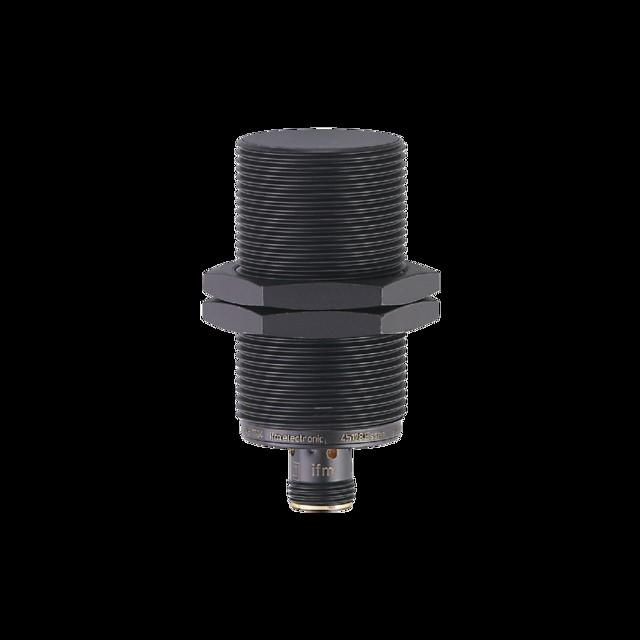

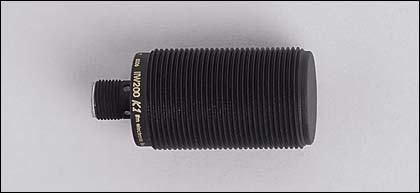

The IFM IIW200 is an inductive sensor designed for a variety of applications in automation technology. With an M30 x 1.5 metal thread and a sensing distance of 10 mm, this sensor provides reliable object detection without direct contact. The sensor is flush mountable and features a 3-wire DC PNP connection technology that supports an operating voltage of 10 to 30 V DC. The current consumption is 20 mA, making it an energy-efficient solution. The IIW200 is equipped with an M12 connector and is characterized by its resistance to magnetic fields as well as gold-plated contacts that ensure high reliability and durability. The housing is made of brass with a safecoat-coated surface, while the active area is made of thermosetting plastic, making the sensor particularly robust.

• Flush mountable for flexible installation options
• Magnetic field resistant for use in demanding environments
• Gold-plated contacts for improved conductivity and longevity
• Robust brass housing with safecoat coating
• 3-wire DC PNP connection technology for easy integration.
