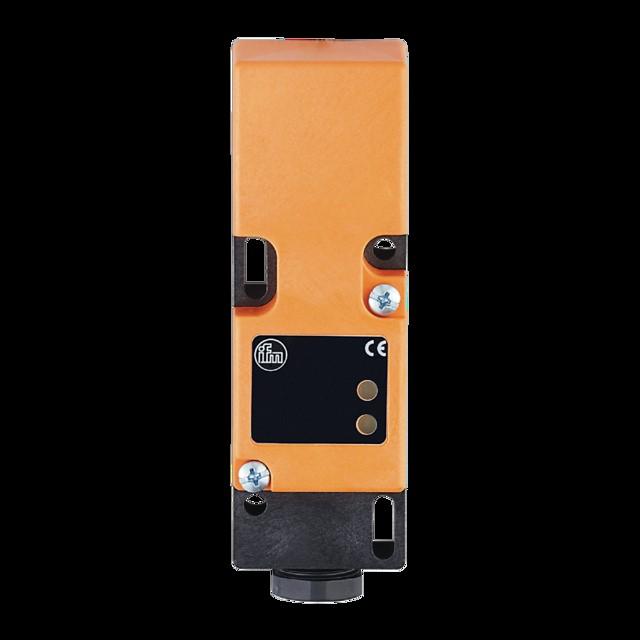

The IFM IM5022 is an inductive sensor designed for various applications in automation technology. With a compact, rectangular plastic housing, this sensor provides a reliable solution for detecting objects without direct contact. The switching distance of 15 mm allows for precise detection, while the programmable functions for normally open and normally closed configurations enable flexible adaptation to different requirements. The sensor is designed to operate with a voltage of 10 to 36 V DC and has a low current consumption of only 15 mA, making it energy-efficient. The terminal connections are suitable for cables with a cross-section of up to 2.5 mm², ensuring easy installation. The IFM IM5022 is therefore a versatile and reliable choice for industrial applications.
Width | 40 mm |
Item number | 32078736 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | IM5022 |
Release date | 17.10.2022 |
Material group | Plastic |
Material | Housing: PPE |
LED colour | Yellow |
Nominal voltage | 36 V |
Nominal current | 0.02 A |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | Slovakia |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Inductive sensor, Inductive sensor, Square plastic, Switching distance: 15 mm, Flush-mounting, 3-wire, DC PNP, Operating voltage: 10...36 V DC, Current consumption: 15 mA, Normally open contact, n.c. progr., connection terminals, terminals up to 2.5 mm², material housing: PPE, NC contact programmable, n.o |
Length | 40 mm |
Width | 40 mm |
Height | 120 mm |
