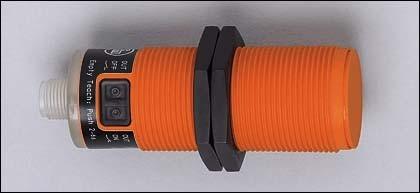

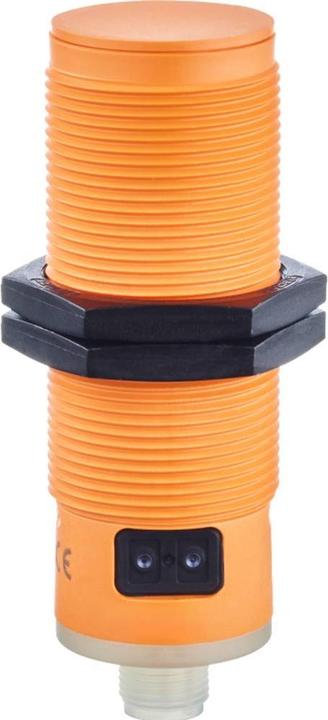

Ifm Electronic Sensor, capacitive, M30x1.5 KI5083

Manufacturer: Ifm Electronic
Designation: Sensor, capacitive, M30x1.5 DC, serial number: 20, non-burst, IP65
Type: KI5083
Length of sensor: 90 mm
Diameter of sensor: 30 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 20 mm
Suitable for safety functions: no
Type of switching function: programmable/configurable
Type of switching output: PNP
Type of electrical connection: M12 connector
Number of semiconductor outputs with signaling function: 1
Type of actuation: other
Version of interface: without
Version of interface for safety-related communication: without
Enclosure type: cylinder, thread
Coating of enclosure: other
Cascadable: no
Max. output current at the safe output: 200 mA
Supply voltage: 10..36 V
Rated control supply voltage Us at DC: 10..36 V
Voltage type: DC
Switching frequency: 10 Hz
With monitoring function of downstream devices: no
Material of housing: Plastic
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none

Ifm Electronic Sensor, capacitive, M30 x 1.5: more details
Capacitive sensors, M30 x 1.5, Plastic thread, Switching distance: 20 mm, Non-flush mountable, 3-wire, DC PNP, Operating voltage: 10...36 V DC, Current consumption: 20 mA, Normally open / Normally closed programmable, Plug connection, M12 plug connection, Teach function, Electronic lock, Material housing: Housing: PBT, Plug: PC, Buttons: TPE-U, EAN: 4021179148030.
