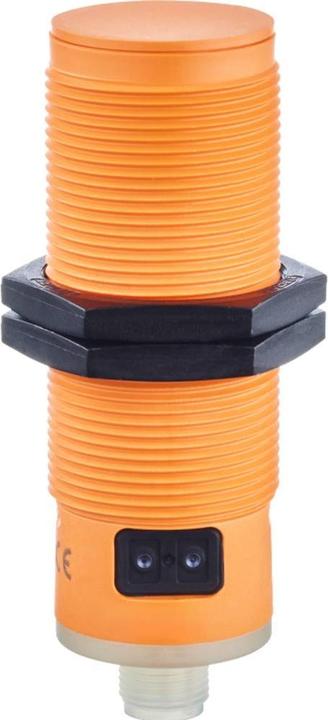

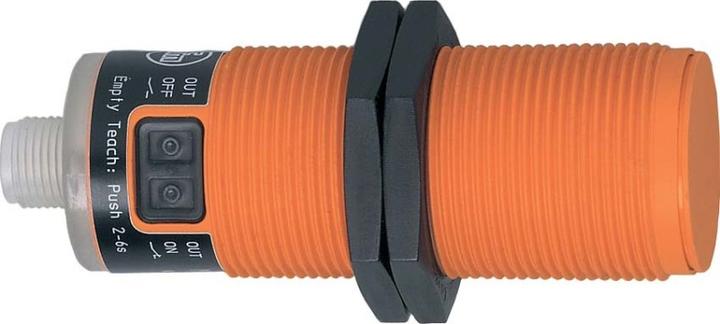

Ifm Electronic sensor capacitive KI0054
Manufacturer: Ifm Electronic
Designation: Capacitive sensor AC/DC, sn=20mm, nb
Type: KI0054
Length of sensor: 90 mm
Diameter of sensor: 30 mm
Mechanical installation condition for sensor: Non-flush
Switching distance: 20 mm
Suitable for safety functions: No
Version of switching function: Programmable/configurable
Version of switching output: 2-wire
Version of electrical connection: Plug connector M12
Number of semiconductor outputs with signaling function: 1
Type of actuation: Metallic target
Version of interface: Without
Version of interface for safety-related communication: Without
Enclosure type: Cylinder, thread
Coating enclosure: Other
Cascadable: No
Supply voltage: 20..250 V
Rated control supply voltage Us at AC 50 Hz: 30..250 V
Rated control supply voltage Us at DC: 20...250 V
Voltage type: AC/DC
Switching frequency: 10 Hz
With monitoring function of downstream devices: No
Material of housing: Plastic
Pressure-resistant: No
Explosion protection category for gas: Without
Explosion protection category for dust: Without

Ifm Electronic sensor capacitive KI0054: more details
Capacitive sensors, Capacitive sensor, M30 x 1.5, Plastic thread, Switching distance: 20 mm, Non-flush mountable, 2-wire, AC/DC, Operating voltage: 20...250 V DC / 30...250 V AC (47...63 Hz), Make contact / break contact programmable, n.o. / n.c. programmable, Plug connection, 1/2"-UNF plug connection, Teach function, Electronic lock, Material housing: Housing: PBT, Plug: PC, Buttons: TPE-U, EAN: 4021179147064.
