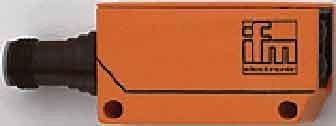

Ifm Electronic Sensor OU5045
Manufacturer: Ifm Electronic
Designation: Sensor one-way/transmitter
Type: OU5045

Scope of delivery of the one-way system: Transmitter
Pre-failure signal: No
With time function: No
Rated switching distance: 6000 mm
Max. switching distance: 6000 mm
With reflector: No

Analogue output 0 V ... 10 V: No
Analogue output 0 mA ... 20 mA: No
Analogue output 4 mA ... 20 mA: No
Analogue output -10 V ... +10 V: No
With other analogue output: No
With communication interface analogue: No
With communication interface AS-Interface: No
With communication interface CANOpen: No
With communication interface DeviceNet: No
With communication interface Ethernet: No
With communication interface INTERBUS: No
With communication interface PROFIBUS: No
With communication interface RS-232: No
With communication interface RS-422: No
With communication interface RS-485: No
With communication interface SSD: No
With communication interface SSI: No

Electrical connection type: M12 connector
Equipment protection class: Protection class 3
Explosion protection category for gas: None
Explosion protection category for dust: None
Enclosure type: Cuboid
Width of sensor: 16 mm
Height of sensor: 28 mm
Length of sensor: 73 mm
Material of optical surface: Glass
Material of enclosure: Plastic
Ambient temperature: -25..80 °C
Rated control supply voltage Us at DC: 10...55 V
Voltage type: DC
With monitoring function of downstream devices: No
Laser protection class: Without
Wavelength of the sensor: 880 nm
Light type: Infrared light
With restart interlock: No
Suitable for safety functions: No
Protection class (IP): IP67

Ifm Electronic Sensor OU5045: further details
Optical sensors, through-beam sensor, rectangular plastic, range 6 m, 2-wire, DC, operating voltage: 10...55 V DC, current consumption: 20 mA, plug connection, M12 connector, material housing: modified PPO, material optics: glass.
