IT ELITE SRA-SE50016H - 5 GHz, 16 dBi Sector Antenna Box

The sector antenna operates in the 5 GHz band with a gain of 16 dBi and horizontal polarization, providing space for additional electronics.

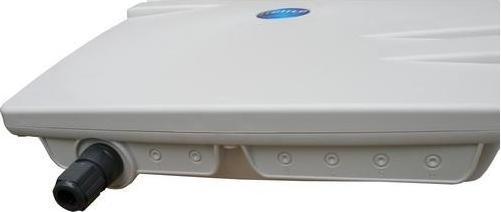

The package includes a waterproof outdoor enclosure with a sector antenna and ample space for RouterBOARDs or other electronic accessories. The enclosure is equipped with a special waterproof RJ-45 Ethernet connector for easy network connection and PoE.

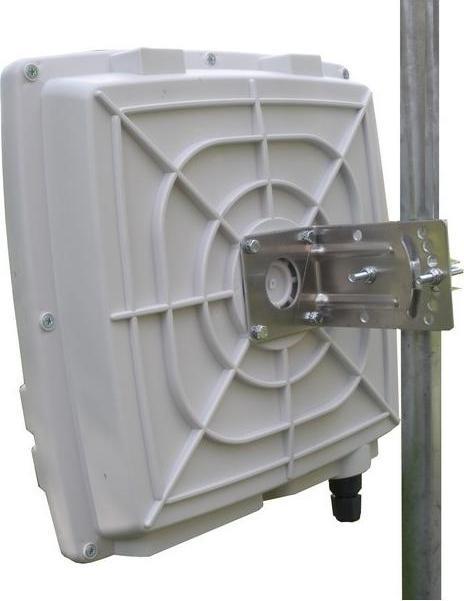

Ideal for use in harsh weather conditions, as the corrosion resistance of the materials allows the antenna to operate even in saltwater environments. The high-quality mast mount ensures easy and smooth tilt adjustment as well as shock-resistant operation.

This product is excellent for point-to-point and multipoint connections. The enclosure features suitable mounting holes for MikroTik RouterBOARDs of the 411, 433, and 600 series.

Key Features:

• 16 dBi sector gain
• Special weatherproof enclosure for outdoor use
• Compatible with MikroTik RouterBOARDs
• High-quality construction
• Robust mounting elements
• Easy alignment and installation
• Designed for use in all weather conditions

Applications:

• 5 GHz band Wireless LAN
• IEEE 802.11a WLAN systems
• RLAN
• WiMAX
• Point-to-multipoint applications

Electrical Properties:

• Frequency: 5.1 - 5.9 GHz
• Gain: 16 dBi
• Polarization: Horizontal
• Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
• Vertical beamwidth: 9°
• VSWR:
• Impedance: 50 Ohm
• Front to Back Ratio: > 35 dB

Enclosure Properties:

• Technology: Microstrip
• Material: UV-resistant
• Color: Gray
• Minimum temperature: -40°C
• Maximum temperature: 80°C

Mechanical Properties:

• Compatible with: RB411, RB433, and RB600 series
• Connector: N-jack
• Enclosure connection: Waterproof Ethernet connector
• External dimensions: 385 x 385 x 80 mm
• Weight: 2.4 kg / 5.3 lbs.
