VARIA's optical fiber (LWL) patch cables allow for the connection of various network components while ensuring lossless data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional differentiation of an LWL patch cable.

High quality standards, 100% testing, and individual measurement protocols. The use of high-quality materials and modern production facilities, along with continuous quality controls during the production process, ensure lossless signal transmission and consistently high quality. Each individual patch cable undergoes testing after assembly. Following successful measurement, each patch cable is accompanied by an individual measurement/testing protocol.

Technical specifications:

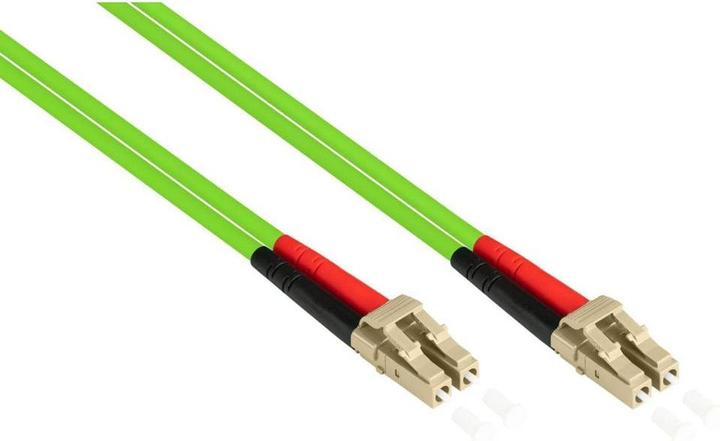

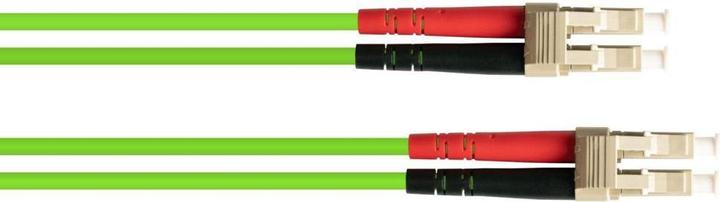

• Optical fiber (LWL) duplex patch cable
• Connector 1: LC (UPC)
• Connector 2: LC (UPC)
• Includes dust caps

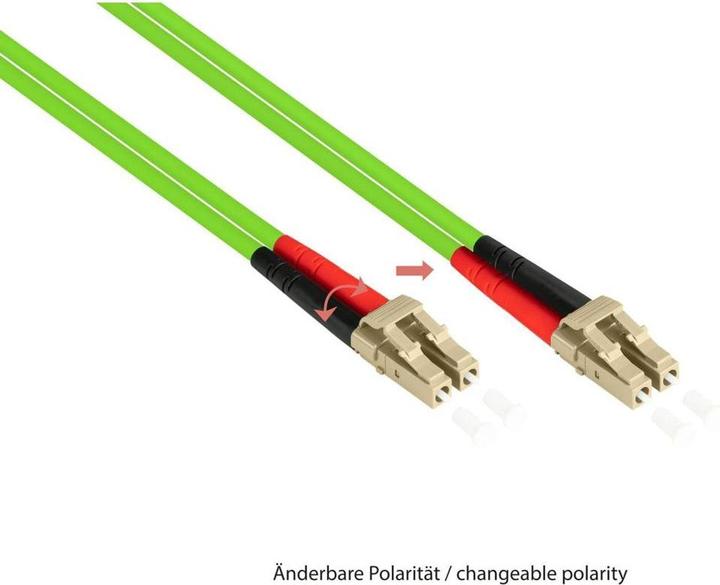

• Reversible polarity/coding
• Attached bend protection sleeve
• Fiber quality: OM5
• Fiber type: Multimode 50/125µ
• Cable construction: Duplex
• Cable diameter: 3.0 mm
• Jacket material: Halogen-free (LSZH)
• Minimum bend radius: 7.5 mm
• Operating temperature: -40 to +85 °C
• Quality: Each cable comes with its own measurement/testing protocol

Color: Lime green (OM5)
Length: 20 m

Added value of OM5 technology. The OM5 technology offers a range of improvements over previous quality classes. Previous multimode fibers were optimized for an optical window or wavelength range of 850 nm. Outside of this window, signals are significantly attenuated, requiring Ethernet signals to be transmitted over multiple parallel multimode fibers. For example, 10-Gigabit Ethernet requires two fibers (one fiber for transmitting = Transmit, one for receiving = Receive). In 40- or 100-Gigabit Ethernet applications, signals are transmitted over eight fibers (2x four fibers with 10 or 25 Gigabit/s) or...
