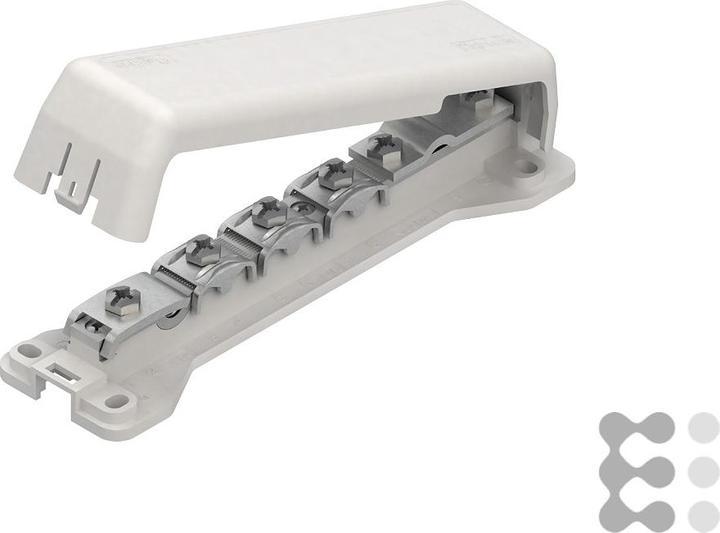

HKL Potential Equalization Rail 1309

Manufacturer: HKL
Designation: Potential Equalization Rail
Type: 1309
Design: Fixed installation
Execution: With cover cap
Insulator: Yes
Explosion-proof version: No
Height: 43 mm
Width: 51 mm
Length: 187.5 mm

Total number of round conductor connections: 1
Number of round conductor connections 10 mm: 1
Number of flat conductor connections up to 30 mm: 1
Number of connections for rigid conductors up to 6 mm²: 1
Number of connections for rigid conductors up to 16 mm²: 6
Number of connections for rigid conductors up to 25 mm²: 6
Number of connections for rigid conductors up to 95 mm²: 1

Material of the contact rail: Copper
Surface of the contact rail: Other
Material of the terminal: Copper
Surface of the terminal: Galvanized/electrolytically zinc-coated

Further details:
Potential equalization rail, according to VDE 0618-1 with sealable hinge cover, halogen-free.
Dimensions (approx. measurements) H x W x L: 43 x 51 x 187.5 mm
Connection options:
1 x 2.5 mm² - 6 mm²
6 x 2.5 mm² - 25 mm²
1 flat bar up to 30 x 4 mm and/or 1 round conductor Ø 8 mm - Ø 10 mm
1 x 50 mm²

Material of housing: PP (Polypropylene)
Material of clamping rail: Copper, nickel-plated
Material of clamping elements: Steel, galvanized
Color shade: Light gray
RAL: 7035 (similar)
EAN: 4011126212204.
