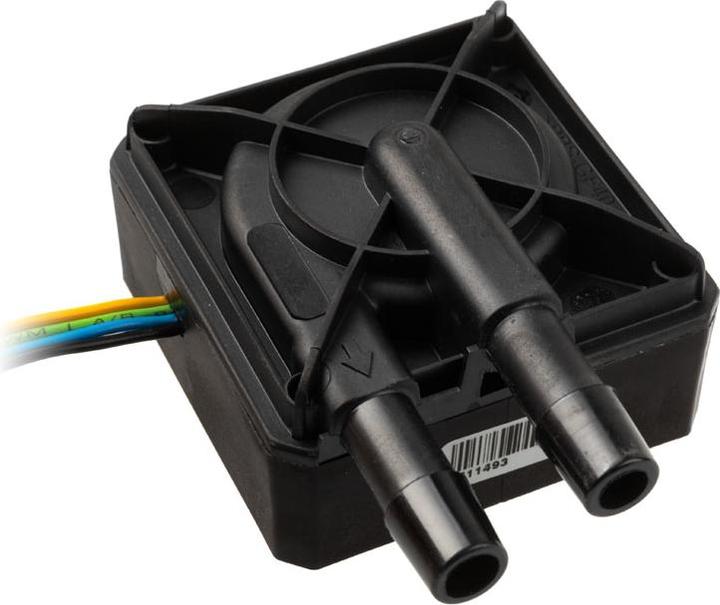

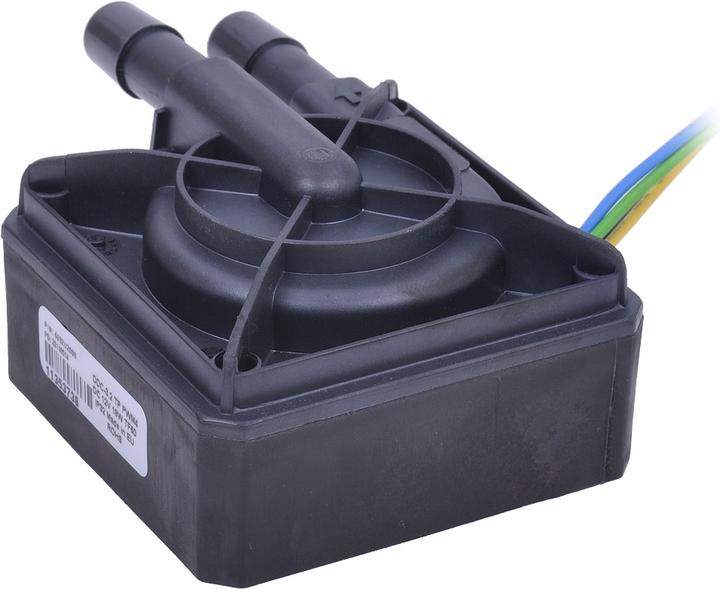

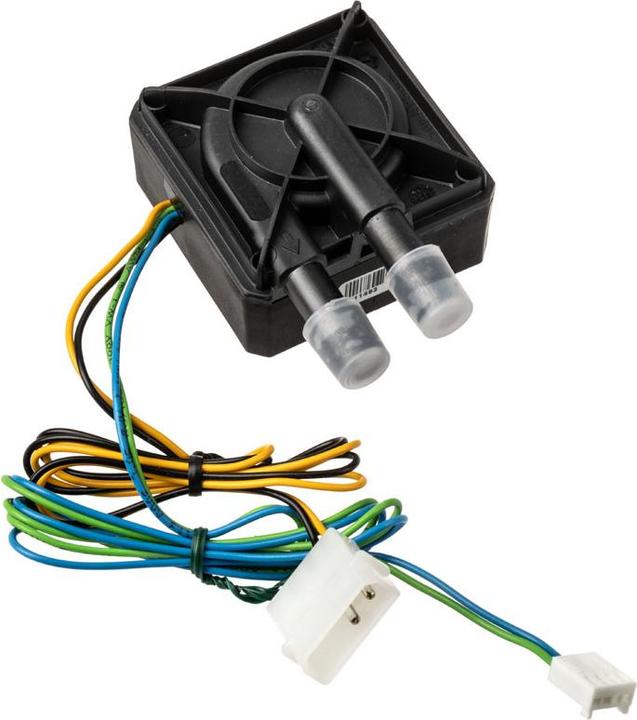

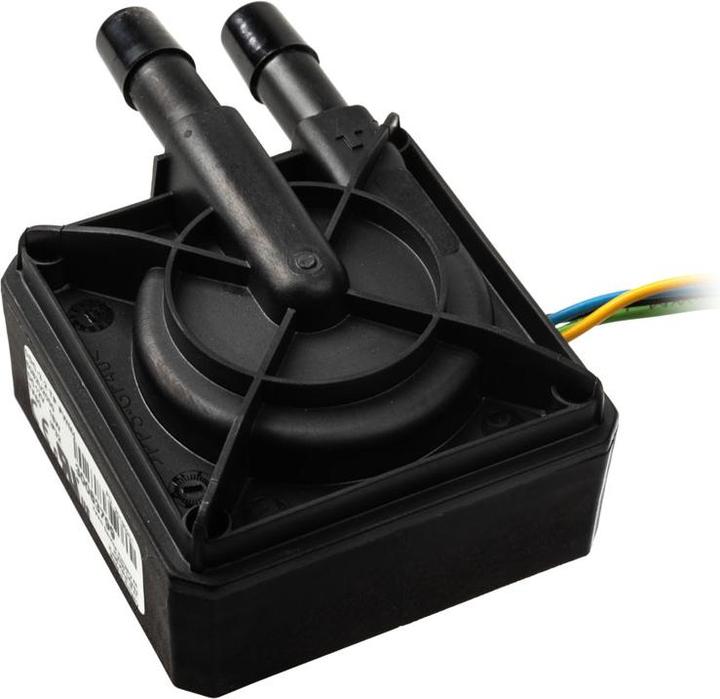

Laing DDC pump 12V DDC 3.2 PWM

Currently out of stock

Product details

This pump is the world's first pump to be used in mass-produced water-cooled workstations and is ideal for cooling processors and electronic components. Due to its size and performance, it can also be used in a variety of applications.

This DC pump is an electronically commutated spherical motor pump, with operating times significantly exceeding 50,000 hours at 12 volts. The only moving part in a spherical motor pump is a spherically shaped rotor/impeller unit, which is supported by an ultra-hard, wear-resistant ceramic bearing ball.

Key specifications

Max. flow
600 l/h
Max. delivery head
4.70 m
Pump Power connection
4PIN Molex
water inlet
Hose connector 8mm
water outlet
Hose connector 8mm
Item number
2585276

General information

Manufacturer
Laing
Category
Water cooling pumps
Manufacturer no.
13996 / 60E0C2101YYY004
Release date
5.6.2014

Water cooling pump properties

pump type
Laing DDC
Max. delivery head
4.70 m
Max. flow
600 l/h
Voltage
12 V
Pump Power connection
4PIN Molex
water outlet
Hose connector 8mm
water inlet
Hose connector 8mm
Max. system temperature
60 °C
Exact colour description
Black
Power consumption
18 W
Material
Hard coal
Approved liquids
Water, water/glycol mixture
Possible control range
6-13.2V DC

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
62 mm
Width
62 mm
Height
38 mm

Package dimensions

Length
11 cm
Width
10 cm
Height
4.50 cm
Weight
246 g
