LC-Power

LC Power LC1200P V3.0

The fully modular power supply LC1200P V3.0 is 80 PLUS Platinum certified, ensuring optimal stability even at full performance. With its fully modular cable management, it provides high convenience when building or upgrading your systems. The power supply impresses with an efficiency of up to 92 percent and offers up to ten PCI-Express connections (2x PCIe 5.0 12+4-Pin / 8x PCIe 6+2-Pin), making it an ideal solution for high-end setups.

Features:
- 1200 Watts: top performance for your components
- Fully modular cable management and black flat cables keep your system tidy and improve airflow
- 80 PLUS Platinum certification: efficiency of up to 92%
- Full Range: 110 - 240 V
- Reliable and safe thanks to DC-to-DC technology
- 135 mm high-pressure fan ensures optimal and quiet cooling
- 2x PCI-Express 5.0 12+4-Pin and 8x PCI-Express 6+2-Pin for connecting multiple graphics cards
- Power supply series: Platinum Series
- ATX version: ATX V3.0

Connections:
- 20+4-Pin motherboard: 1x 650 mm
- 4+4-Pin motherboard 12 V (8-Pin EPS): 2x 650 mm
- 4-Pin motherboard 12 V: 1x 800 mm
- PCI-Express 5.0 12+4-Pin: 2x 650 mm
- PCI-Express: 6+2-Pin (total 8x, 4x 675 mm / 4x 750 mm)

Connection options:
Option 1: 20x SATA & 3x PATA
Option 2: 16x SATA & 6x PATA

SATA: total 20x (5x 500 mm / 5x 650 mm / 5x 800 mm / 5x 950 mm)
PATA: total 6x (2x 500 mm / 2x 650 mm / 2x 800 mm)
FDD: 1x 900 mm
Fan: 135 mm
PFC: active

Safety circuits: OVP = Over Voltage Protection, OCP = Over Current Protection, OPP = Over Power Protection, SCP = Short Circuit Protection, UVP = Under Voltage Protection

Note: Please connect only one graphics card up to 450 W or 600 W to the power supply. Alternatively, two graphics cards of up to 300 W each can be connected. Haswell compatible.

Power supply dimensions: 86 x 180 x 150 mm
Power: 1200 W
Color: black.

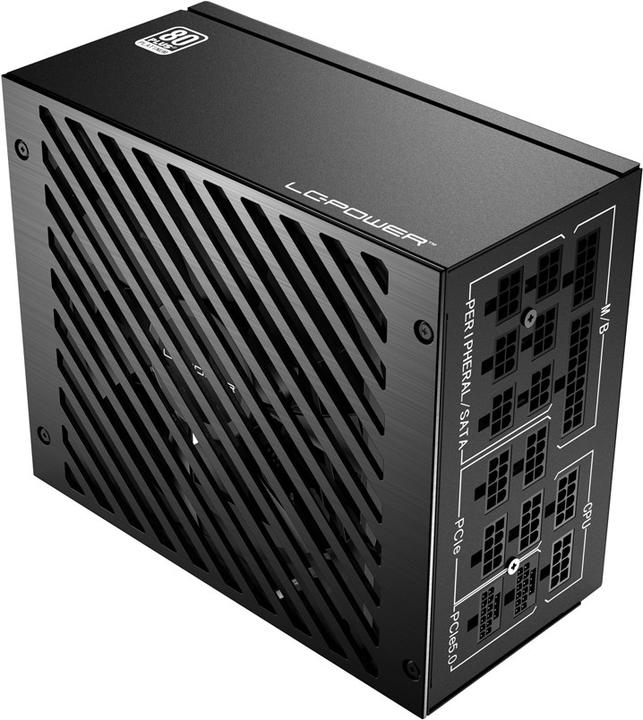

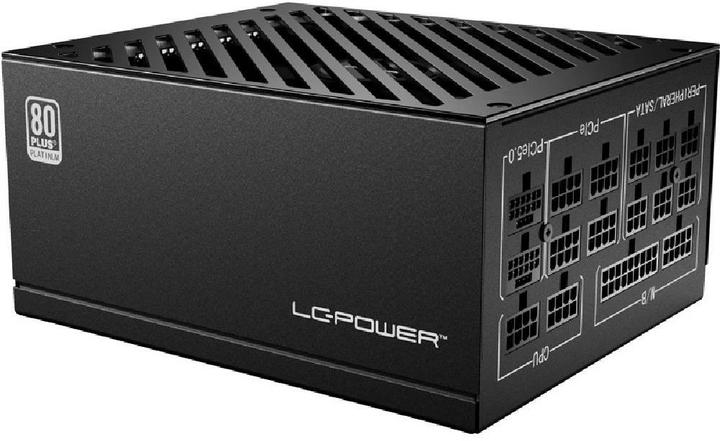

Actual product image LC-Power LC1200P (1200 W)

Key specifications

Form factor

80 PLUS certificate

80 PLUS is an American initiative that awards power supplies with the certification of the same name. For certification, the PC power supply units must have an efficiency of at least 80 percent at loads of 20, 50 and 100 percent.
