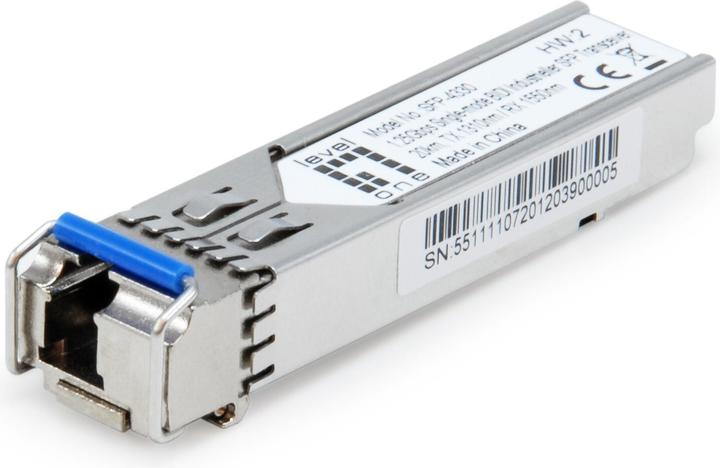

The LevelOne SFP-4330 is a high-performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20 km on a single fiber core. These bi-directional SFP transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths traveling in either direction.
The SFP-4330 transmits using a wavelength of 1310 nm and receives using a wavelength of 1550 nm. When coupled with the LevelOne SFP-4340 transceiver, which transmits at and receives at the opposite rates (1550 nm TX and 1310 nm RX), you get bi-directional data communication on a single fiber core.
This hot-swappable SFP transceiver offers the latest industrial standard in full-duplex Ethernet connectivity and can withstand a wide range of temperature operations.
Module type | SFP |
Wavelength | 1310 nm |
Transmission | Single Mode |
Item number | 17821825 |
Manufacturer | LevelOne |
Category | Transceivers |
Manufacturer no. | SFP-4330 |
Release date | 9.12.2021 |
Colour | Silver |
Exact colour description | Silver |
Module type | SFP |
Transmission | Duplex |
Wavelength | 1310 nm |
Max. Transmission range | 20000 m |
Transmission | Single Mode |
Interface | SFP+ |
Data throughput | 1.25 Gbit/s |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | User manual |
Length | 56.60 mm |
Width | 13.70 mm |
Height | 12.40 mm |
Weight | 19 g |
