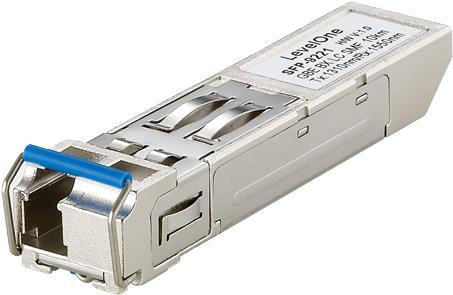

The LevelOne SFP-9221 is a powerful and cost-effective SFP transceiver. It offers up to 1.25 Gbps bidirectional data transmission over a single fiber optic core for distances up to 10 km. The bidirectional SFP transceivers can transmit data in both directions through a single optical fiber by using different wavelengths for each direction.

The SFP-9221 transceiver transmits at a wavelength of 1310 nm and receives at a wavelength of 1550 nm. When using a LevelOne SFP-9221 transceiver, you achieve bidirectional data communication (1310 nm TX and 1550 nm RX) over a single fiber optic core.

• 1310 nm FP LD
• Multiple data rates: 125 Mbps to 1.25 Gbps, NRZ
• Single +3.3 V power supply
• AC/AC differential electrical interface
• RoHS compliant and lead-free
• Compatible with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
• Single LC connector
• Compliant with IEEE-802.3z specification for Gigabit Ethernet at 1.25 Gbps
• Compliant with ANSI specification for fiber optic applications at 1.06 bps
• Eye safety designed to meet LASER Class 1 compliance with EN60825-1.
