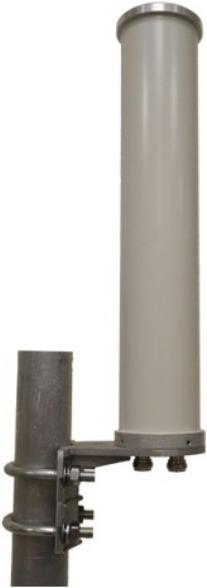

MARS MA-WO2455-DPDB8 - Dual Polarized Dual Band Omni Antenna

This dual polarized dual band antenna operates at 2.4-2.5 GHz and 5.15-5.875 GHz, providing stable and efficient performance with a gain of 5-8 dBi. It is a cost-effective solution for large applications and systems such as 802.11, Point-to-Multi-Point, WLAN access points, mesh networks, ISM, WiMAX, and more. The elevation patterns are full bandwidth without deviation from the horizon.

Electrical

• Frequency range: 2.4 - 2.5 GHz; 5.15 - 5.875 GHz
• Gain, typical: 5 dBi; 8 dBi
• VSWR: 1.7:1 typical; max. 2:1
• Polarization: Dual, vertical and horizontal
• 3 dB beamwidth, azimuth, typical: Omnidirectional
• 3 dB beamwidth, elevation, typical: 35°; 25°
• Port-to-port isolation, typical: -35 dB
• Maximum input power: 10 Watts
• Input impedance: 50 Ohms

Mechanical

• Dimensions (H x Diameter): 400 x 60 mm
• Weight: 600 g
• Connector: 2x N-type, female
• Radome: UV-protected plastic
• Mounting: 2" mast bracket

Environmental

• Operating temperature range: -40°C to +65°C
• Vibration: According to IEC 60721-3-4
• Wind load: 200 km/h
• Flammability: UL94
• Waterproof rating: IP-67
• Humidity: ETS 300 019-1-4, EN 302 085 (Annex A.1.1)
• Salt mist: According to IEC 68-2-11.
