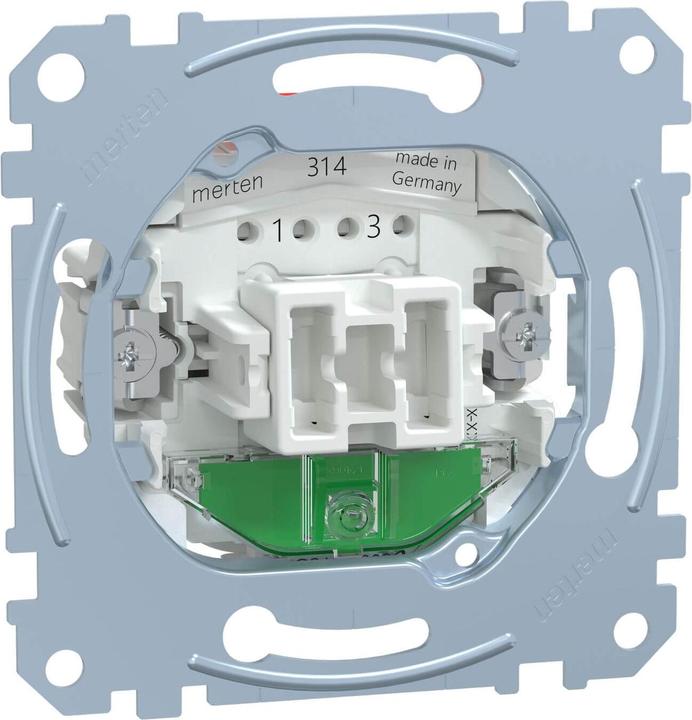

Merten off control switch ins. MEG3102-0000

Manufacturer: Merten
Designation: Off-control switch-ins
2-pole, 10AX, 250V AC
Type: MEG3102-0000
Switching type: Off control switch, 2-pole
Control type: Rocker/button
Assembly: Flush-mounted insert
Pushbutton switch: No
Number of operating rockers: 1
Mounting type: Flush-mounted, claw/screw mounting
With mounting plate: Yes
Material: Metal/plastic
Material grade: Other
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Text field/inscription area: No
Illumination: Control light with LED illumination, illuminated when switched on
Type of lighting: LED, replaceable
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: No
Type of connection: Plug-in terminal
Washing machine switch: No
Device width: 73 mm
Device height: 73 mm
Device depth: 37 mm
Installation depth: 28 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Minimum device box depth: 40 mm
Compatible with Amazon Alexa: No
IFTTT support available: No

Features:

• Front-side retrofitting of QuickFlex lighting modules without switch disassembly.
• Front side measuring and test contacts, accessible without switch disassembly.
• Quick-thread screws for claw mounting.
• Recessed claws with return spring.
• Bright zinc plated support ring insulated to claw.
• With claw and screw fixing.
• With plug-in terminals.
• To be completed with rockers for switches/buttons system M.
• EAN: 4042811144517.
