Metz Connect Module REGplusK IP20 1309428103-E

Manufacturer: Metz Connect
Designation: Module REGplusK IP20 unpopulated
Type: 1309428103-E
Mounting type: TH35 rail
Design of the rail adapter: straight
Material: Metal

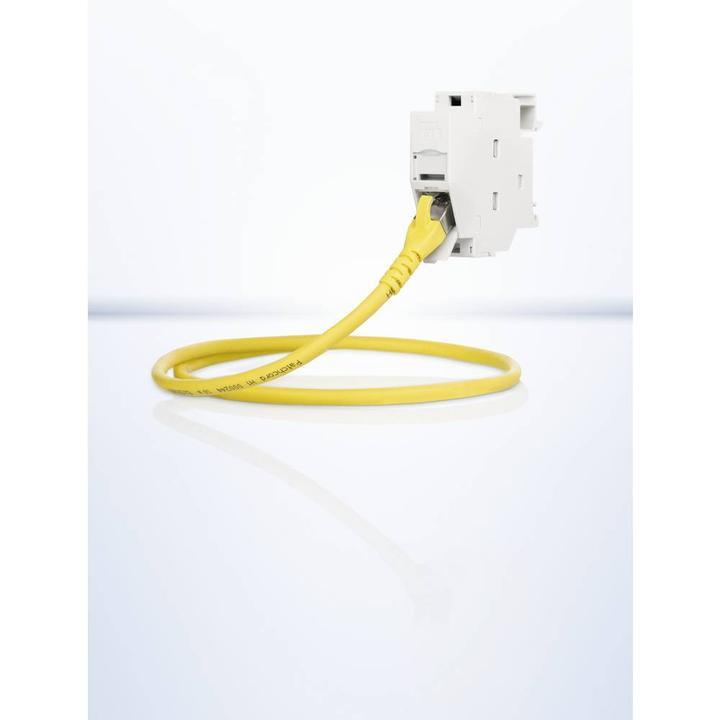

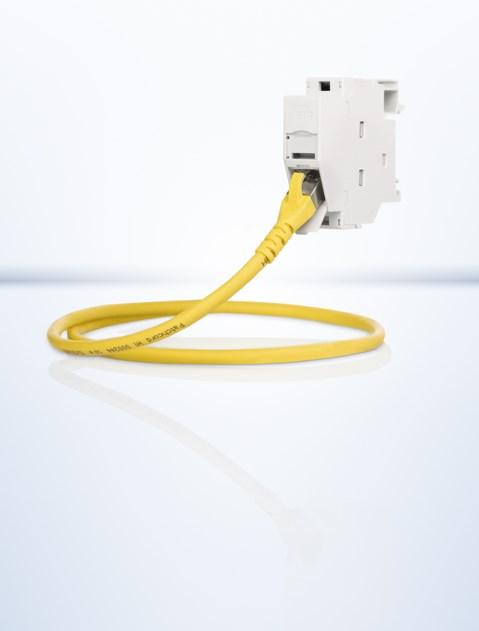

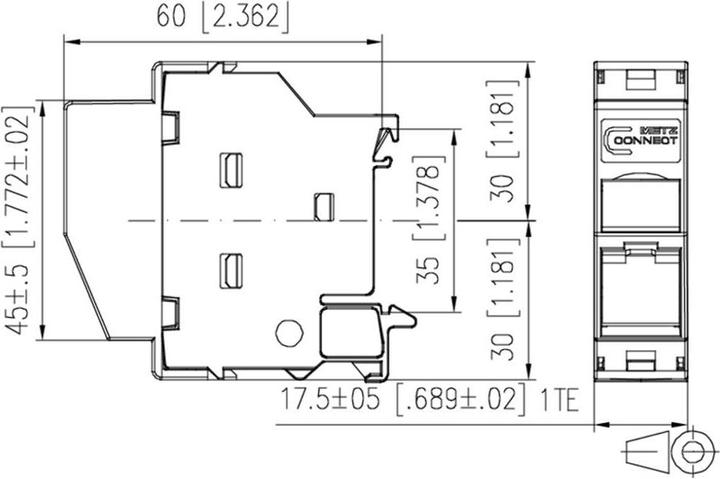

The REGplusK IP20 module is an unpopulated connection unit designed for mounting on a TH35 rail according to DIN EN 60715. It is intended for a single module in Keystone design, with variable cable access from 45° from above or below. The plug direction is tilted 45° downwards. With a width of 1TE, it allows for the installation of up to 12 REGs in a standard electrical distribution board. When installed as a device of protection class I, the potential equalization is provided through an integrated potential equalization plate directly over the rail. The rail must be integrated into the building's potential equalization through appropriate measures.

The device is protected from direct contact by a cover. When mounted in protected insulated distribution boards, protection class II remains intact; for this, the potential equalization plate must be removed.

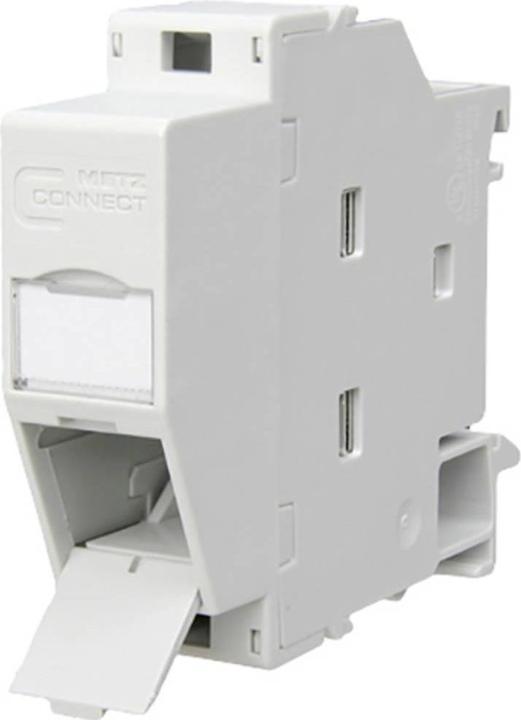

Additionally, the module features an integrated dust protection flap (also available in color).

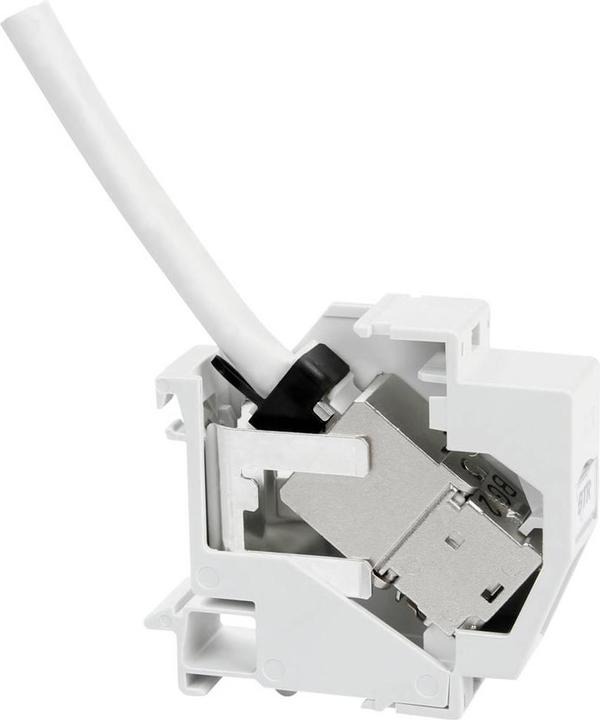

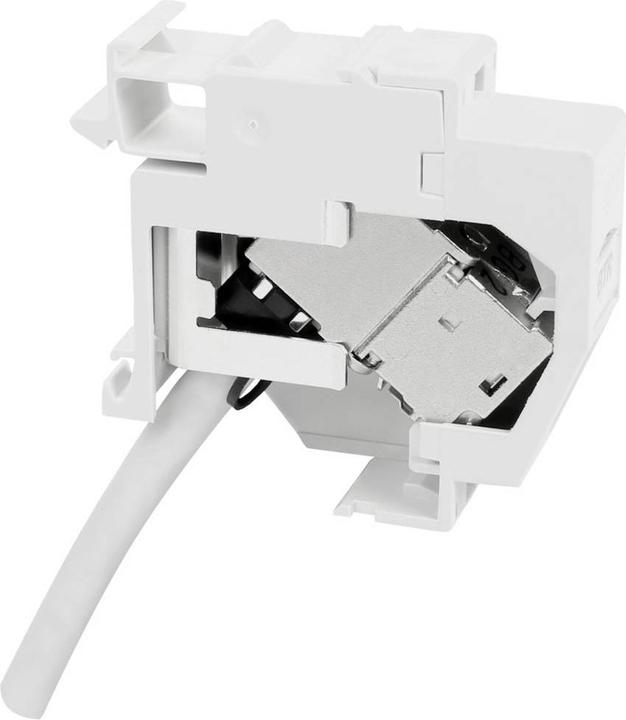

Suitable modules for cable access at 45° from above: C6, Amodul K 180°, E-DAT module coupling 180°, UTP module Cat.5e and Cat.6. Suitable modules for cable access at 45° from below: C6Amodul K 270°. Not suitable for modules in module design and C6, Amodul K 90°.

EAN: 4250184161516.
