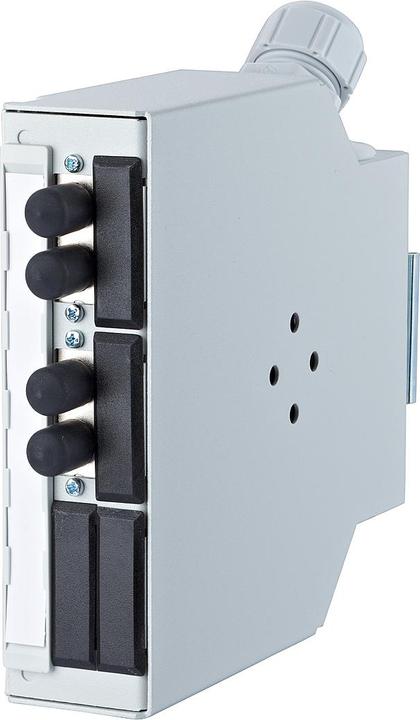

Metz Connect Fiber Optic Splice Distributor OpDAT 150240C30210S

Manufacturer: Metz Connect
Designation: Fiber Optic Splice Distributor OpDAT 2xSC/STDMMSP REGplus
Type: 150240C30210S
Suitable for number of couplings/adapters: 6
Suitable for number of module inserts: 6
With number of couplings/adapters: 2
With front panel: yes
With housing: yes
With pigtails: no
APC version: no
Connector type external: ST-Duplex
Connector type internal: SC-Duplex
Color: gray
Mounting type: DIN rail
Height: 125 mm
Width: 125 mm
Depth: 34 mm

Further details:
Splice distributor for TH35 mounting rail, equipped with SC-D/ST-D (MM) couplings made of zinc die-cast, ceramic guide sleeve slotted for multimode applications, with fiber reservoir, freely labelable labeling strip, various installation options on the mounting rail possible, splice tray with heat shrink splice holder, front panel can be completely removed, cable entry from above or below, straight or angled, with M20 screw connection (up to 2 possible), introduction of pre-terminated cables possible. An M20 cable entry with strain relief is included, fastening of the housing cover with only one captive screw, free coupling cutouts equipped with special blind covers.

Variants: equipped with 2, 3, 4, or 6 SC-D/ST-D couplings (SC-D internal, ST-D external). Note: When using pre-terminated cables with ST connectors, the unpopulated variant of the OpDAT REGplus must be used. The required ST-D couplings are available as accessories. Before mounting the couplings into the housing, the pre-terminated ST connectors must be attached to the couplings for space reasons.

EAN: 4250184152552.
