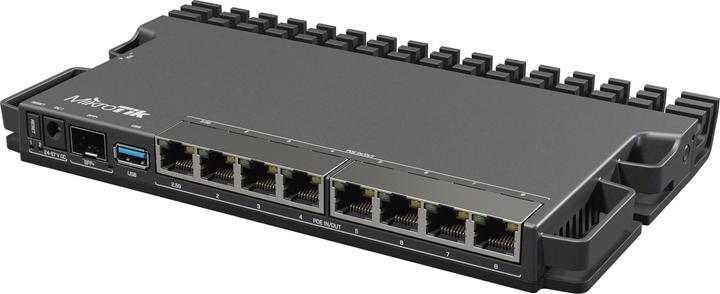

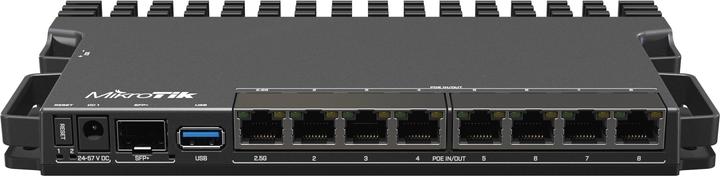

RB5009UPr+S+IN - High-performance router RB5009 with PoE-in and PoE-out on all ports

This version of the RB5009 features all the advantages of its predecessor: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connections. It offers speed, power, and durability. This time, MikroTik has added PoE-in and PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC socket, you have 10 different power supply options. Two redundant power supplies would elevate your uptime to the next level. The RB5009UPr+S+IN takes it a step further!

All power supply options support a wide voltage range from 24 to 57 V. However, you cannot mix the voltages. When using PoE-Out to power other devices, the board selects the source with the highest voltage (DC socket or 2-pin connector) to supply power.

Each PoE-Out port can deliver up to 25 W of power. All ports combined are limited to 130 W, which should be sufficient for most configurations. You can manually set the maximum available power from your power sources if needed. When it comes to PoE-Out capabilities, the new RB5009 can compete with MikroTik's legendary PoE switches: CRS354 and CRS328. In the smallest possible form factor and at the best price on the market!

Protect your uptime, protect your peace of mind!

Included parts

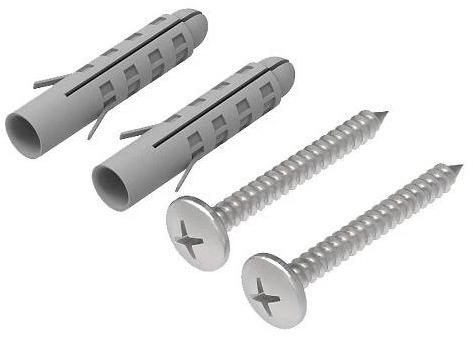

K-55 screw set
IEC cable
48V2A96W
Connector plug

Specifications

Product code: RB5009UPr+S+IN
CPU: 88F7040 1.4 GHz
CPU architecture: ARM 64bit
Number of CPU cores: 4
RAM size: 1 GB
RAM type: DDR4
Storage: 1 GB, NAND
Number of 1G Ethernet ports: 7
Number of 2.5G Ethernet ports: 1
Number of 10G SFP+ ports: 1
USB port: 1 (3.0 Type A)
Operating system: Only v7.
