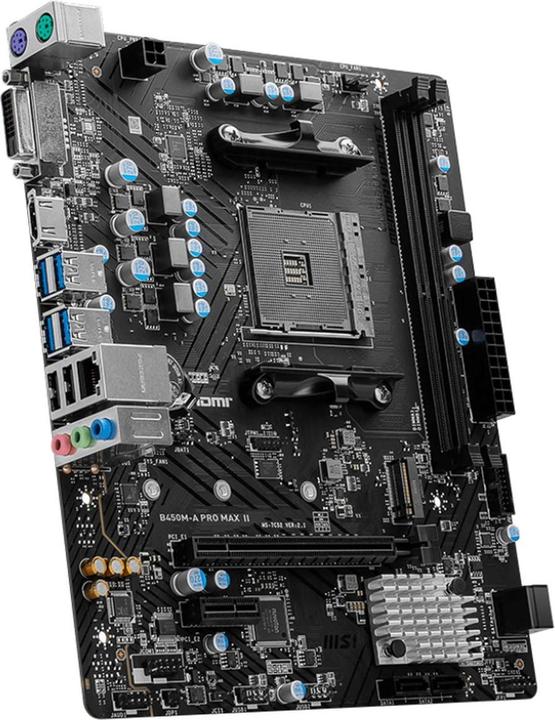

MSI B450M-A PRO MAX II moederbord
AM4, AMD B450, mATXProduct details
Do you value having control over your computer's resources? Do you enjoy testing different components and exploring the limits of their capabilities? The MSI B450M-A PRO MAX II motherboard is a model that does not restrict enthusiasts. You can freely use the easily accessible ports, which are surrounded by a comfortable clearance zone. This is a space without surrounding electrical circuits around the ports. Its use protects the motherboard from short circuits caused by close contact between incompatible components. An undeniable advantage is the number of available ports: including SATA 3 x4, 2 internal and 2 rear USB 2.0, as well as 1 USB 3.2 Gen 1 inside the case and 4 at the back. As an added bonus, the manufacturer has included a modern PCI-E slot in a convenient XXL format on the motherboard. This greatly simplifies the exchange of components and provides even better protection for the slot.
Mainboard features | Clear CMOS Button, Front panel audio connector, Parallel header |
Number of memory modules (RAM) | 2x |
Memory type | DDR4-RAM |
Internal connection options | M.2 (1x), mSATA (4x) |
Item number | 39027916 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | B450M-A PRO MAX II |
Release date | 28.9.2023 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Parallel header |
Operating system compatibility | Windows 10, Windows 7 |
BIOS type | UEFI AMI |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3733 MHz |
Supported memory speed | 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz |
Memory type | DDR4-RAM |
RAM buffer | ECC Registered |
Video connections | DVI-D (1x), HDMI (1x) |
Video connection version | HDMI 1.4 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (1x), mSATA (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | SBTi |
Scope of delivery | Sata Cables |
Length | 236 mm |
Width | 200 mm |
Height | 26 mm |
Weight | 970 g |
Product Safety |
Length | 27 cm |
Width | 26.50 cm |
Height | 6.30 cm |
Weight | 682 g |
