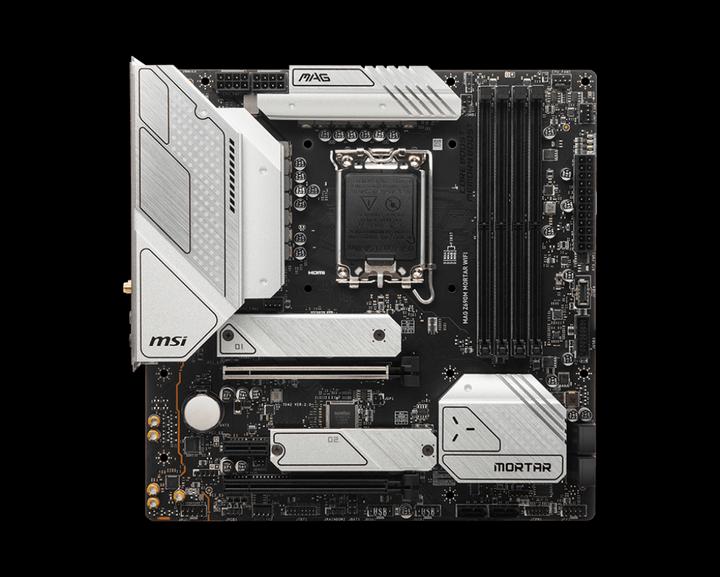

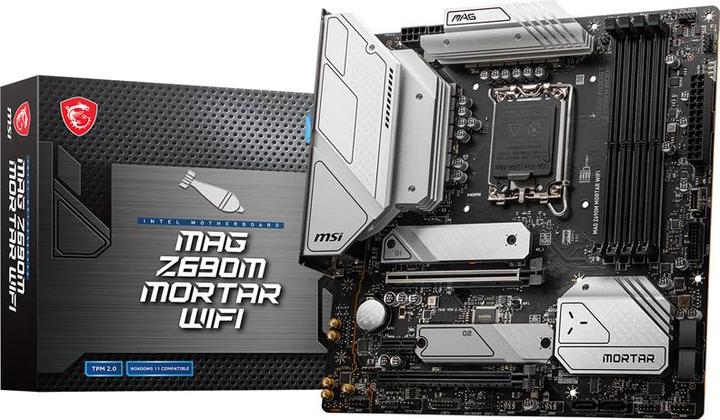

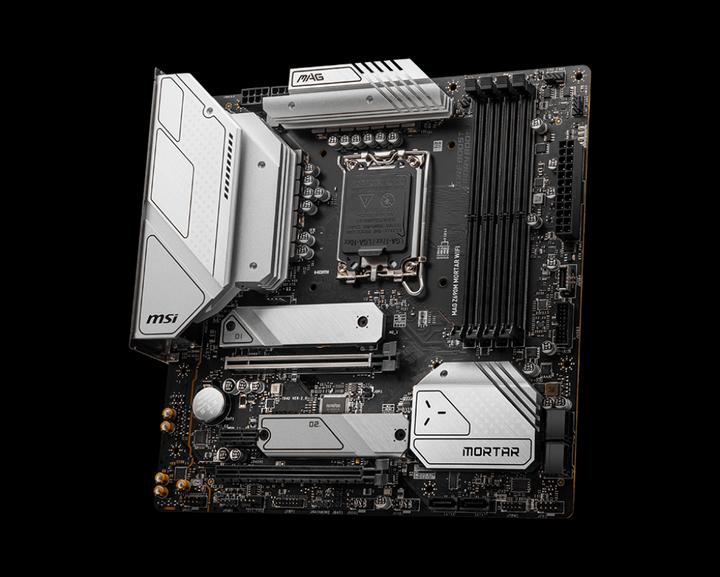

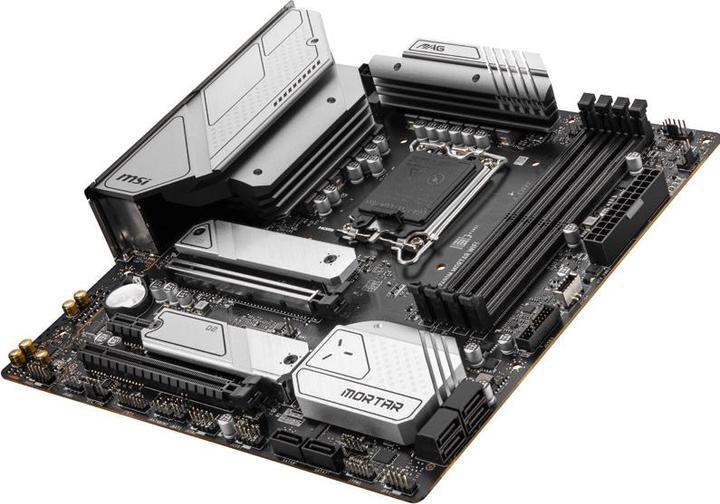

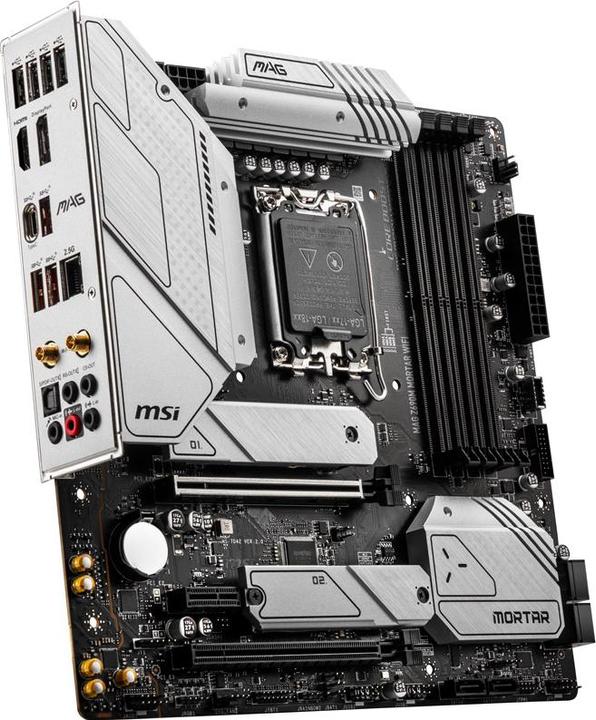

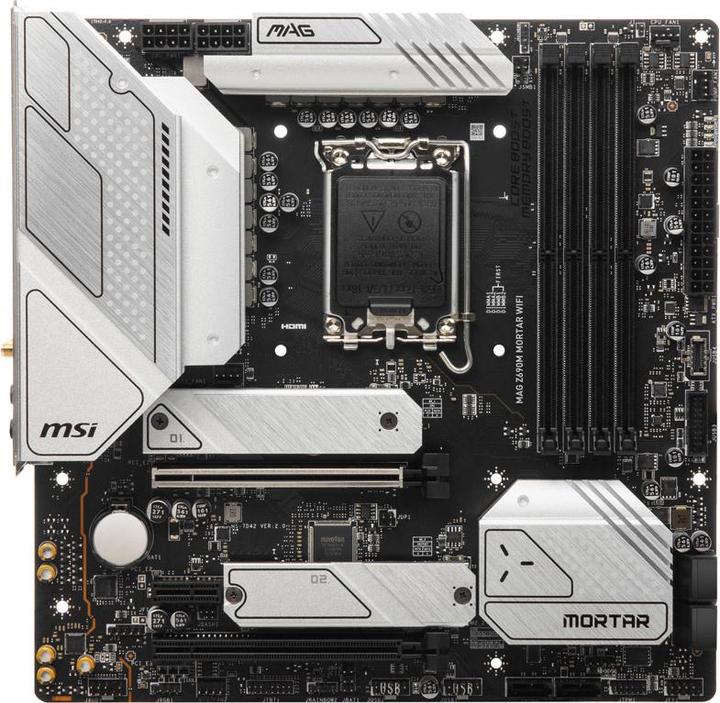

MSI MAG Z690M MORTAR WIFI

LGA 1700, Intel Z690H, mATX
Currently out of stock

Product details

With years of experience, MSI is no stranger to building high-performance motherboards. R&D and engineering teams have reviewed countless designs, evaluated a wide range of high-quality components, and developed products for reliability even under extreme conditions. With multi-core processors, thermal and power design becomes crucial to ensure that temperatures remain low. MSI's enhanced PWM heatsink and improved circuit design ensure that even high-end Intel CPUs run at full speed with MSI motherboards. With MSI motherboards, you can manage speeds and temperatures for all your system and CPU fans. High-performance MSI motherboards are packed with advanced features and the latest technology to tackle any challenge, whether you're a gamer, prosumer, or PC enthusiast. MSI motherboards come equipped with a variety of ports to satisfy gamers. Enhanced audio, advanced LAN networking features, USB, and Mystic Light transform every gaming experience into an impressive one.

Key specifications

Processor family
CeleronCore i3 12th GenCore i5 12th GenCore i7 12th GenCore i9 12th GenPentium
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
USB 2.0 Header (4x)
Wireless transmission
Wi-Fi
Mainboard features
Front panel audio connector
Item number
18422515

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7D42-014R
Release date
5.1.2022
External links

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel Z690H
Mainboard features
Front panel audio connector
Operating system compatibility
WindowsWindows 10
BIOS type
UEFI
Wireless transmission
Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
CeleronCore i3 12th GenCore i5 12th GenCore i7 12th GenCore i9 12th GenPentium

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5-6200
Supported memory speed
2133 MHz2666 MHz2933 MHz3200 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
1 x USB-C
Video connection version
Display port 1.4HDMI 2.1
Multi-GPU technology
AMD CrossFire

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125-BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1200
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Internal interfaces

Internal connection options
USB 2.0 Header (4x)
Expansion slot
PCI Express x16 (1x)

Power supply

Power connectors
8-pin ATX 12V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
211 mm
Width
244 mm
Height
244 mm
Weight
1100 g

Package dimensions

Length
29 cm
Width
28 cm
Height
8.60 cm
Weight
1.64 kg
