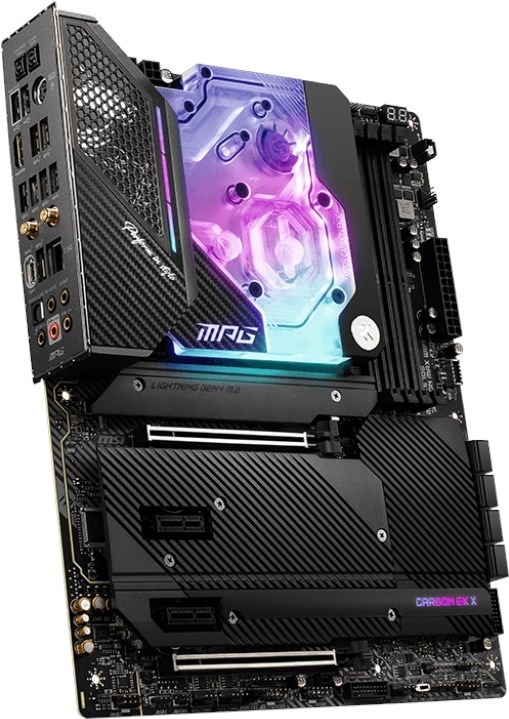

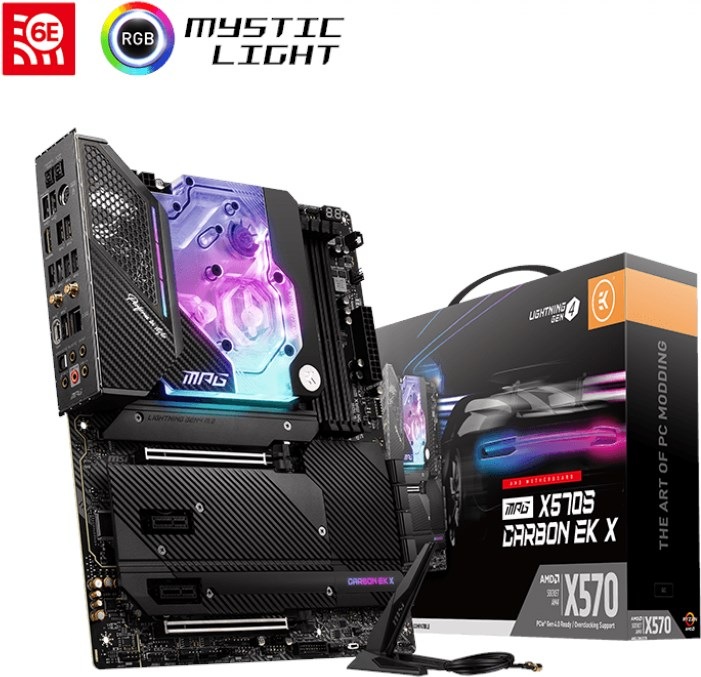

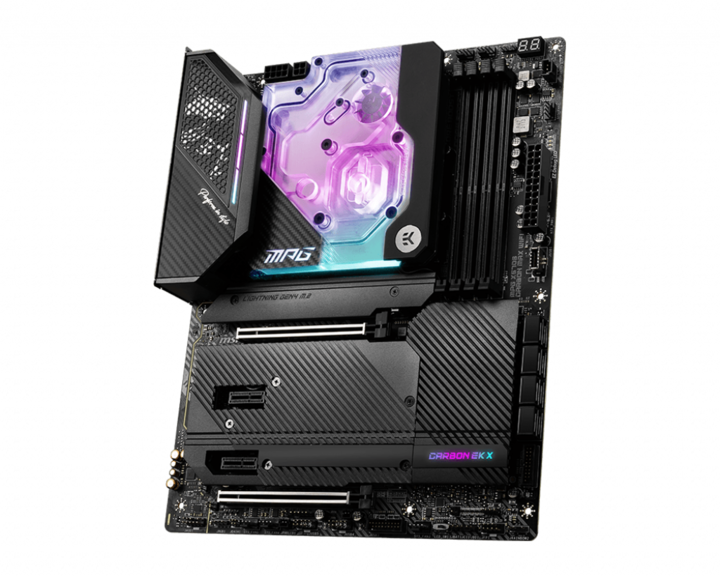

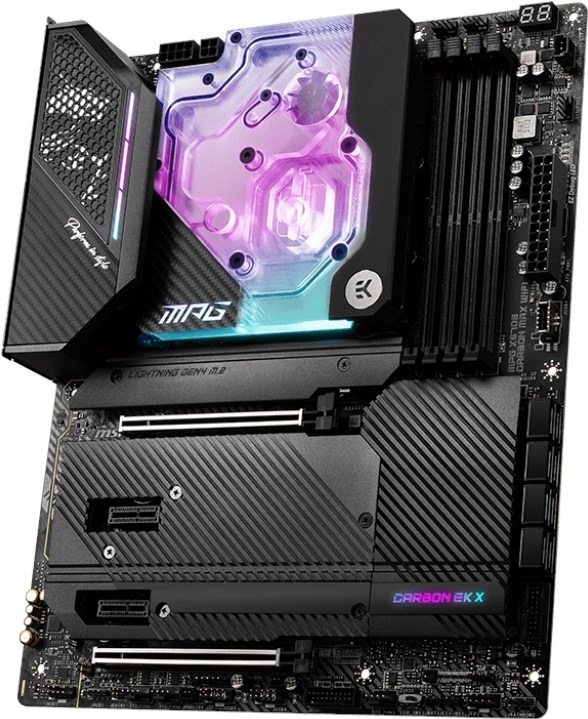

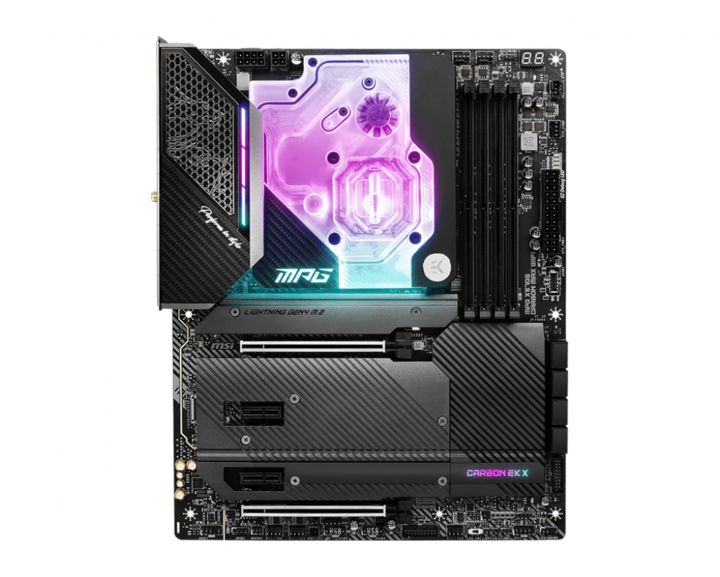

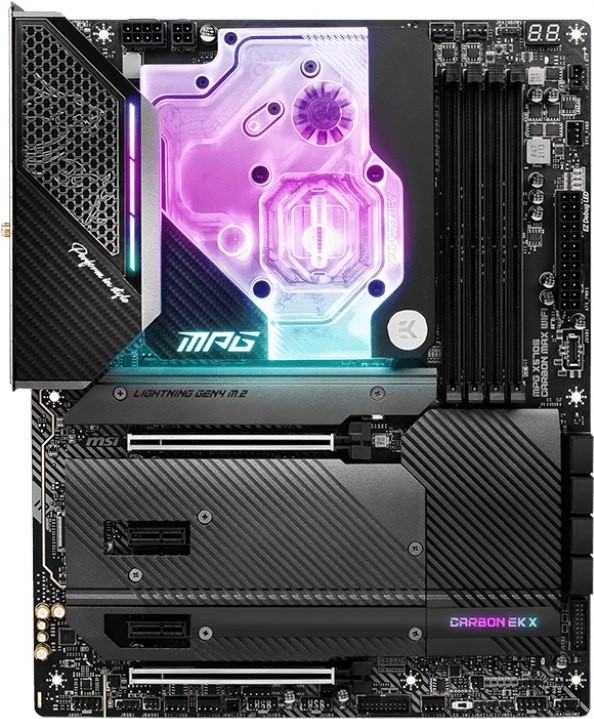

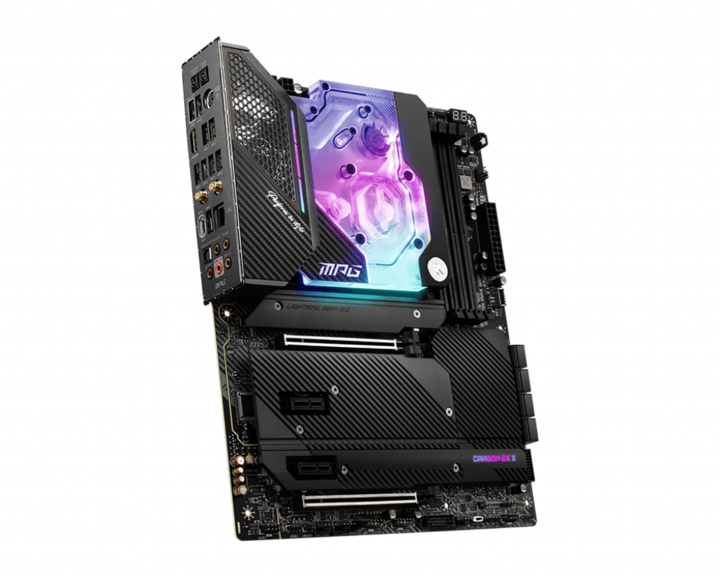

MSI MPG X570S Carbon EK X

AM4, AMD X570, ATX
Currently out of stock

Product details

To support the powerful processors of the AMD Ryzen 5000 series, a specially designed EK cooling solution is used, providing optimal cooling for both the CPU and the VRM power supply section to prevent thermal throttling, allowing gamers to endure high gaming loads without a noisy environment. It is ready for anything.

Key specifications

Processor family
Ryzen 3 5th GenRyzen 5 5th GenRyzen 7 5th GenRyzen 9 5th Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (4x)S-ATA III (8x)
Wireless transmission
BluetoothWi-Fi
Mainboard features
Clear CMOS Button
Item number
16698505

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7D52-002R
Release date
20.9.2021

Motherboard properties

Form factor
ATX
Socket
AM4
Chipset
AMD X570
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
BluetoothWi-Fi
Wi-Fi standard
Wi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11acWi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 3 5th GenRyzen 5 5th GenRyzen 7 5th GenRyzen 9 5th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-3000
Max. RAM OC
5300 MHz
Supported memory speed
1866 MHz2133 MHz2400 MHz2800 MHz2933 MHz3000 MHz3200 MHz4000 MHz4300 MHz4400 MHz4800 MHz5000 MHz5200 MHz5400 MHz5600 MHz5800 MHz6000 MHz6200 MHz6400 MHz6600 MHz7000 MHz7600 MHz7800 MHz8000 MHz8200 MHz8400 MHz8600 MHz9500 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

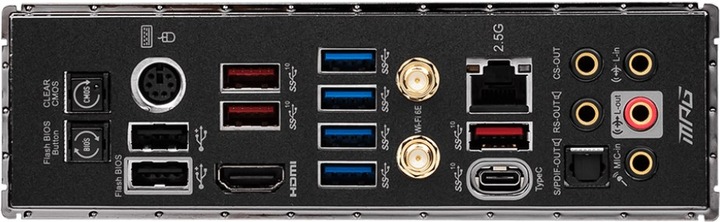

Video connections
HDMI (1x)
Video connection version
HDMI 2.1
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125B
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)Optical TOSLINK (1x)

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (4x)S-ATA III (8x)
Expansion slot
PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
6

Power supply

Power connectors
24-pin ATX4-pin ATX 12V8-pin ATX 12V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
295 mm
Weight
1000 g

Package dimensions

Length
52.70 cm
Width
34.10 cm
Height
9.40 cm
Weight
3.33 kg
