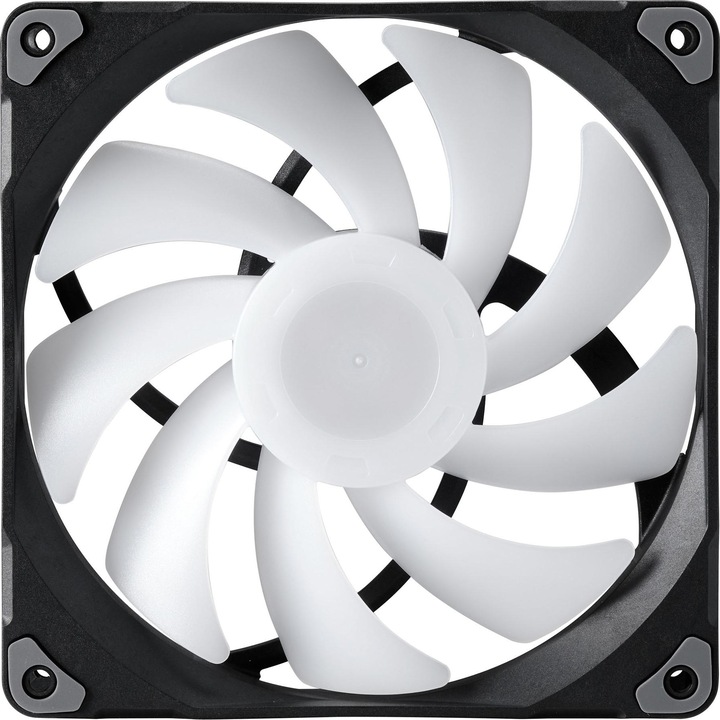

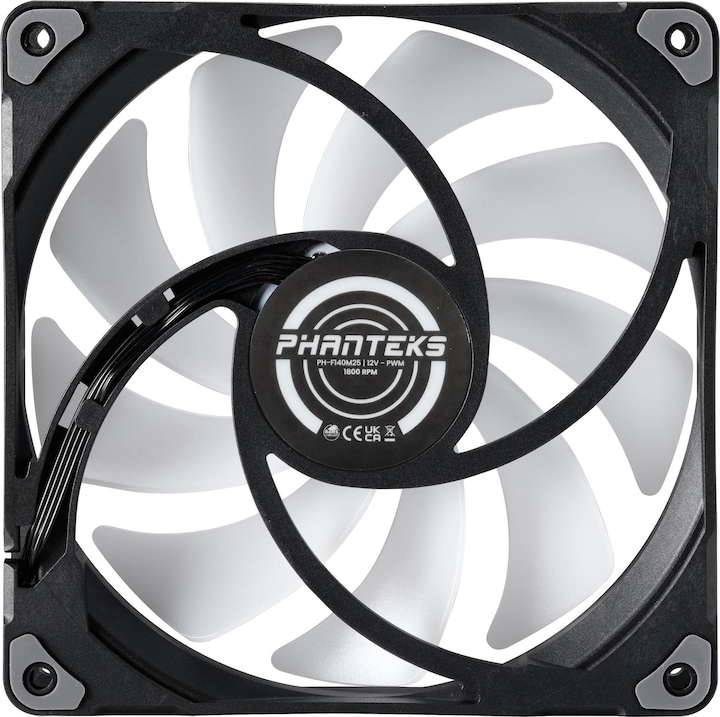

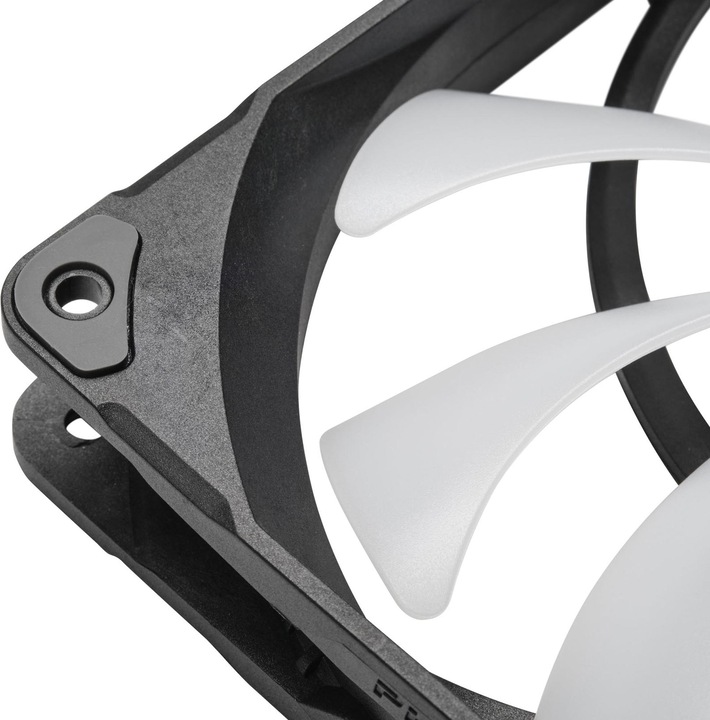

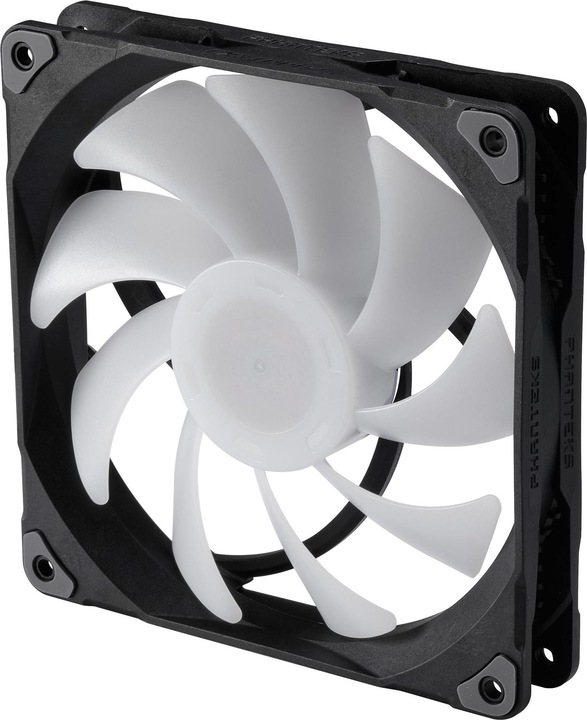

Phanteks M25 PWM D-RGB fan - 140mm, black
140 mm, 1 xPrice in EUR including VAT, free shipping
Delivered between Tue, 3.6. and Wed, 11.6.
Only 1 item in stock at supplier
Only 1 item in stock at supplier
Product details
Main Features
Performance
Recommended placement: Computer case
Type: Fan
Fan diameter: 14 cm
Rotational speed (min.): 500 RPM
Rotational speed (max.): 1800 RPM
Maximum airflow: 104.62 CFM
Maximum air pressure: 2.8 mmH2O
Support for pulse width modulation: Yes
Quantity per pack: 1 piece
Static fan pressure: 2.8 mmH2O
Mean time between failures (MTBF): 30,000 h
Design
Product color: Black
Number of fans: 1 fan
Number of fan blades: 9
Lighting LED: Yes
Number of LEDs: 12
Lighting colors: Multi
LED connection type: 3-pin
Fan connection: 4-pin
Fan control: Yes
Daisy chaining: Yes
Performance
Voltage: 7 - 13.2 V
Nominal voltage: 12 V
Weight and Dimensions
Fan dimensions (W x D x H): 140 x 140 x 25 mm
Fan weight: 193 g
Cable length: 0.12 m
Technical Details.
Fan dimension | 140 mm |
Items per sales unit | 1 x |
power connector | 3-pin, 4-pin PWM |
Airflow | 177.75 m³/h |
Max. noise level | 36.57 dB |
LED colour | RGB |
Item number | 23147055 |
Manufacturer | Phanteks |
Category | PC fans |
Manufacturer no. | PH-F140M25_DRGB_PWM_BK01 |
Release date | 17.11.2022 |
Colour | Black |
Exact colour description | Black |
Fan dimension | 140 mm |
PC fan type | PWM fan, RGB Fan |
Fan type | Standard |
Max. Speed | 1.80 RPM |
Max. noise level | 36.57 dB |
Airflow | 177.75 m³/h |
Static pressure | 2.80 mmH20 |
LED colour | RGB |
power connector | 3-pin, 4-pin PWM |
input voltage | 12 V |
Cable length | 0.12 m |
Items per sales unit | 1 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 25 mm |
Width | 140 mm |
Height | 140 mm |
Weight | 193 g |
Length | 20.30 cm |
Width | 14.90 cm |
Height | 3 cm |
Weight | 244 g |
