Phoenix Contact Industrial UPS system (DIN R
120 VA, 120 W, Online double converter UPSOnly 2 pieces in stock at supplier
Product details

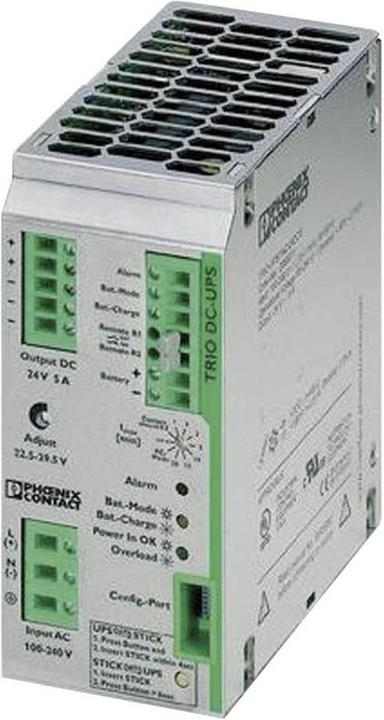

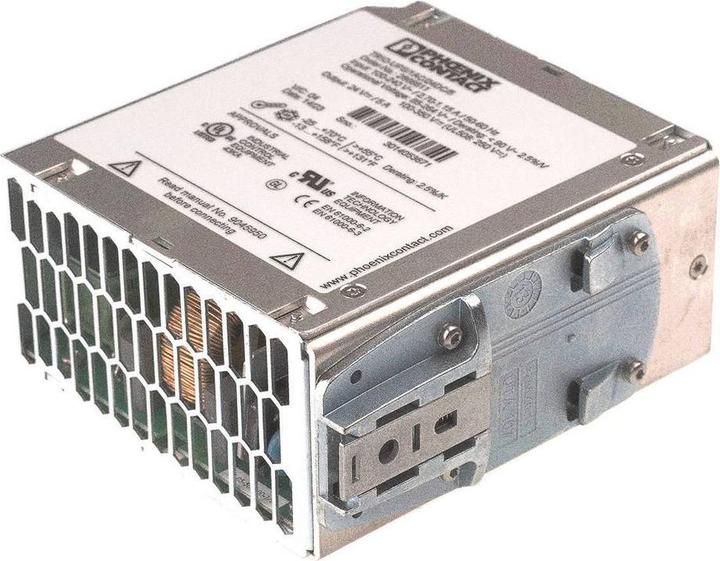

The TRIO-UPS/1AC/24DC/5 provides an uninterrupted 24 V DC power supply with a maximum load current of up to 5 A, both under normal AC supply conditions and during power disturbances. It is specifically designed for powering industrial PCs (IPC). The power supply and the electronic switching unit are housed in a common enclosure. In the event of a power failure, it seamlessly switches to battery operation. In this mode, the output voltage is directly dependent on the battery voltage. The IPC continues to operate without interruption during a voltage drop, thus increasing system availability and preventing uncontrolled shutdowns. The TRIO-UPS/1AC/24DC/5 can be configured using a service PC and the UPS-CONF configuration and management software via the IFS-USB-PROG-ADAPTER. For convenient parameter transfer between different TRIO-UPS devices, the optional IFS-CONFSTICK configuration stick is available.
Operating time at full load | 3600 min |
Model | DIN rail |
Scope of application | Server room |
Item number | 8425330 |
Manufacturer | Phoenix Contact |
Category | UPS |
Manufacturer no. | 2866611 |
Release date | 20.4.2018 |
UPS type | Online double converter UPS |
Power output | 120 W |
Output power capacity | 120 VA |
Model | DIN rail |
UPS protection functions | Overvoltage protection |
Scope of application | Server room |
input voltage | 85 - 264 V |
output voltage | 24V |
Max. input current | 1.10 A |
Efficiency full load | 88 % |
Efficiency battery operation | 88 % |
Maximum operating temperature | 70 °C |
Operating temperature | -25 - 70 °C |
Operating humidity | 0 - 95% |
Protection type (IP code) | IP20 |
Voltage | 24 V |
Operating time at full load | 3600 min |
Operating time at half load | 7200 min |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 |
Items per sales unit | 1 x |
Height | 130 mm |
Weight | 1.10 kg |
Width | 60 mm |
Length | 118 mm |
Length | 18.50 cm |
Width | 18.40 cm |
Height | 9.90 cm |
Weight | 1.12 kg |
Product Safety |
