Directional 868MHz Nf LoRa Outdoor Antenna

The QuPanel LoRa EU operates at 868MHz (EU868, IN865, RU864) with a gain of 8.5 dBi, making it the perfect choice for extending the range and reliability of your wireless Long Range (LoRa) communication networks. The outdoor sector antenna is compatible with Helium Network devices such as SenseCAP M1 and other IoT gateways. Compared to an omnidirectional antenna, the sector antenna transmits the signal over a greater distance due to its directional gain.

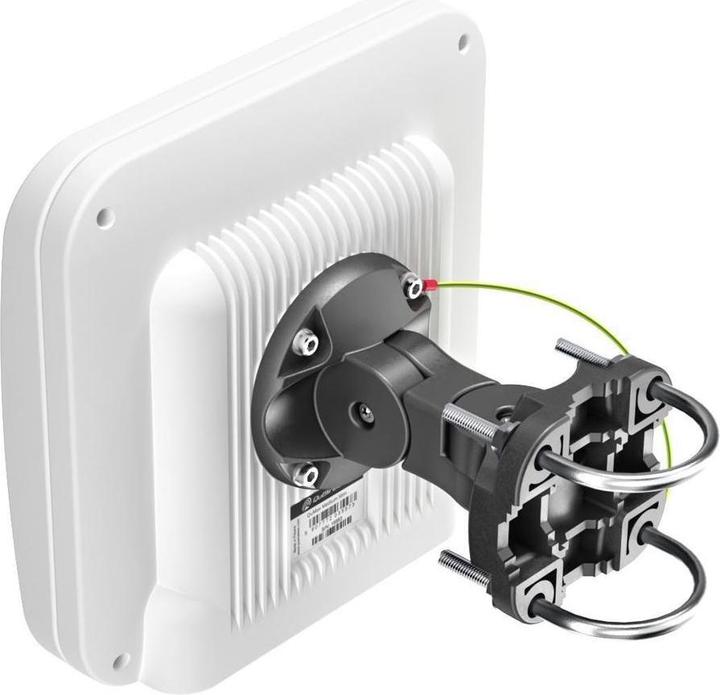

The advanced mounting system offers the significant advantage of being adjustable in a range of +/-35 degrees in two planes, even in the case of wall mounting. Unlock the full potential of your LoRa-based IoT applications with our directional LoRa outdoor antenna. Experience extended range, reduced interference, and improved connectivity for your LoRa networks. Rely on its durability, precision, and easy installation to enhance the performance of your IoT solutions.

With the integrated Nf connectors, you can connect cables of any length.

Antenna Specifications

Frequency

• 868 MHz (EU868, IN865, RU864)

Gain

• 8.5 dBi

VSWR

• <1.80, max <2.00

Radiation Pattern

• 75°/75° ±10°

Polarization

• Vertical

Impedance

• 50 Ω

Front-to-Back Ratio

• >17 dB

Mechanical Specifications

Materials

• ABS, Aluminum, PTFE, Fiberglass

Connector Type

• Nf

Ingress Protection

• IP67

Dimensions

• 270x270x77 mm
• 10.62x10.62x3.03 inch

Weight

• 1.5 kg
• 3.31 lbs

Operating Temperature

• From -40°C to 75°C
• From -40°F to 167°F

Pole Diameter

• 25-60mm
• 0.98-2.36 inch.
