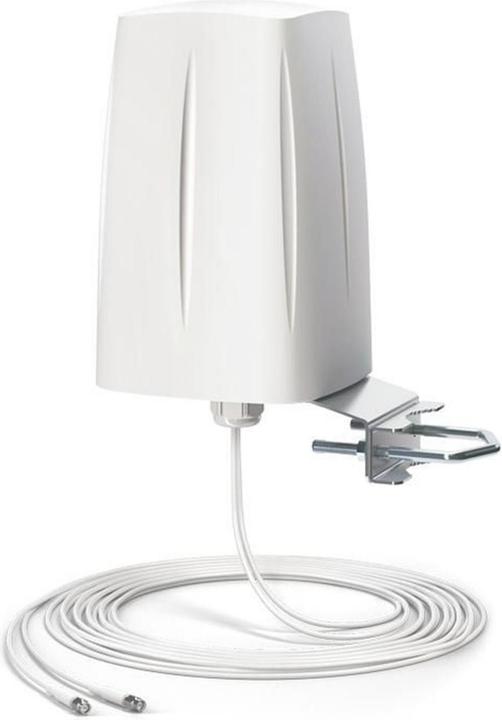

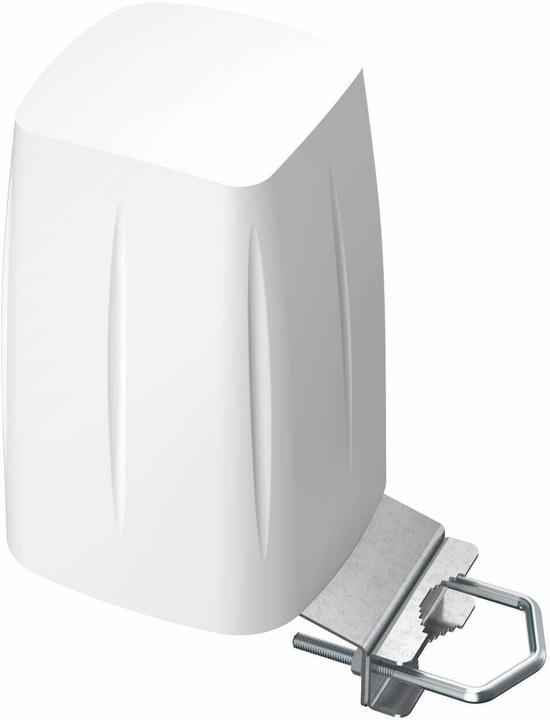

QuOmni LTE MIMO 2x2 - Omnidirectional multiband LTE MIMO 2x2 antenna

The QuOmni LTE omnidirectional MIMO 2x2 LTE antenna operates in vertical polarization and is designed for LTE/3G/2G connections. It supports popular LTE bands (e.g., 3, 7, 20) with frequencies ranging from 694 to 2700 MHz. This antenna is intended for installation on buildings (on poles or walls) as a client antenna or on moving vehicles such as trains, buses, trucks, yachts, and boats to receive Internet via LTE/3G. It is compatible with Teltonika devices including RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 2x2 LTE/3G/2G modems and routers.

LTE Antenna Specification

• Frequency: 0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
• Supported LTE bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
• Gain: 0.694 - 0.96 GHz: 2 dBi / 1.7 - 2.2 GHz: 2 dBi / 2.2 - 2.7 GHz: 4 dBi
• VSWR: <1.60, max <2.00
• Beamwidth: 360°/35° +/-5°
• Polarization: Vertical
• Impedance: 50 ohms

Mechanical Specification

• Materials: ABS, aluminum, PTFE
• Ingress protection: IP67

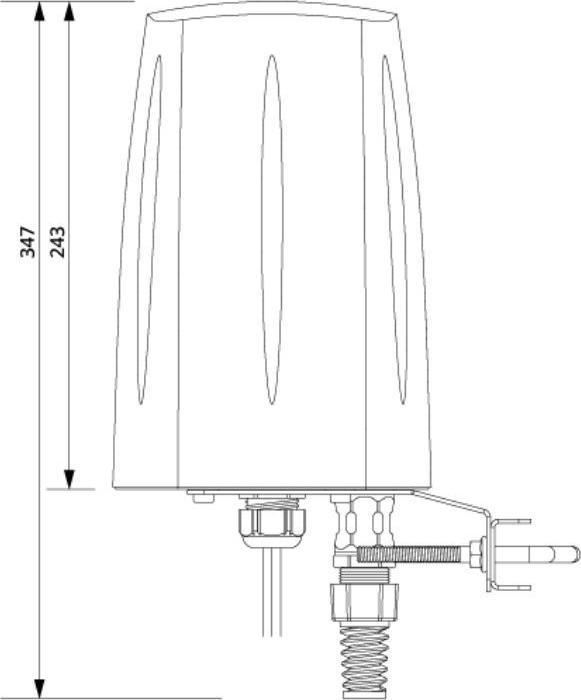

• Dimensions: 160 x 160 x 240 mm
• Weight: 1.5 kg
• Operating temperature: From -40°C to 75°C / From -40°F to 167°F.
