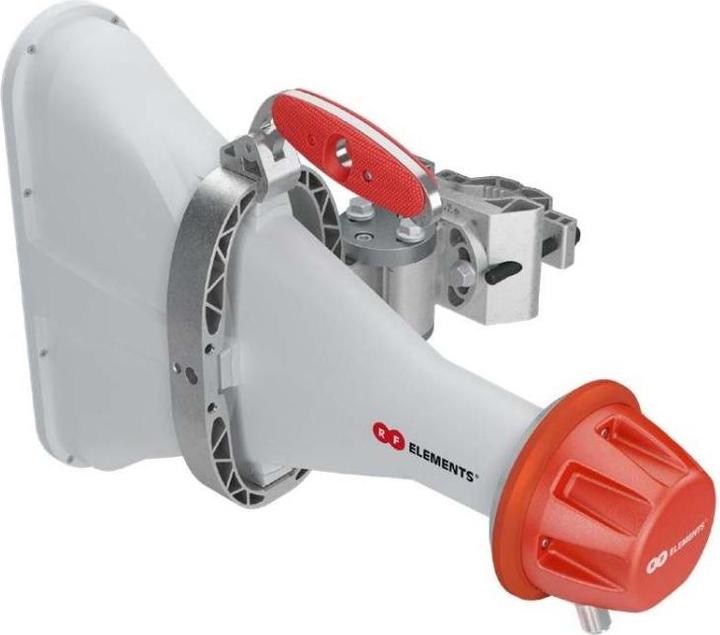

AH60-CC - 60° Asymmetric Horn Antenna

The radiation pattern of the asymmetric 60° horn CC antenna is 60° wide in the azimuth plane and 25° in elevation. The increased gain and excellent radiation efficiency significantly enhance coverage planning capabilities.

The asymmetric 60° horn CC antenna outperforms traditional patch arrays of sector antennas due to the high stability of the radiation pattern across the entire operating bandwidth. The outstanding noise suppression and precision of the radiation pattern favor the use of the antenna in high-density access point clusters and closely spaced locations. The asymmetric 60° horn CC features a pair of N-connectors that allow for a wide range of radio connections.

Technical Specifications

• Radio connection: 2x N-connector, socket connector

• Antenna type: Horn

• Materials: UV-resistant ABS plastic, polycarbonate, HDPE, aluminum, stainless steel

• Environmental conditions: IP55

• Mast diameter: 40-80 mm, recommended as close to 80 mm as possible

• Temperature: -35°C to +60°C

• Wind resistance: 160 km/h

• Wind load: 48/85 N - Front/Side at 160 km/h

• Effective projected area: 393/697 cm² - Front/Side

• Mechanical adjustment: ± 20° elevation, ± 20° azimuth

• Weight: 4.6 kg

• Packaging dimensions: 540 x 365 x 160 mm

Performance

• Frequency range: 5180 - 6000 MHz

• Gain: 17 dBi

• Azimuth radiation width -3 dB: H 45°/V 42°

• Elevation radiation width -3 dB: H 17°/V 16°

• Azimuth radiation width -6 dB: H 60°/V 60°

• Elevation radiation width -6 dB: H 25°/V 25°

• Radiation efficiency: 95%

• Front-to-back ratio: 27 dB

• VSWR max. 5180-6000 MHz: 1.8

• Polarization: Dual linear H + V

• Impedance: 50 Ohm.
