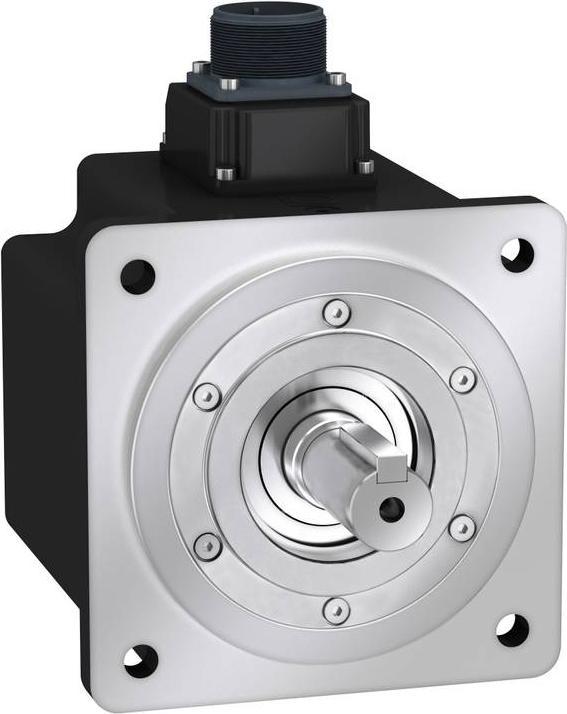

BCH2 servomotor from the Lexium 28 servo drive series. The BCH2 series includes brushless synchronous AC servomotors with compact dimensions for dynamic applications. This servo has a nominal continuous stall torque of 9.55 Nm. Its winding type is optimized for torque at 2000 RPM and features a medium inertia. The rated power is 2000 W. Electrical connection is made via MIL connectors. The motor flange has a mounting dimension of 130 mm. A high-resolution 20-bit absolute encoder as a single-turn allows for precise control. The shaft end is designed to be smooth and complies with protection class IP54. The motor housing meets protection class IP65. There is no holding brake. The corresponding servo amplifier from the Lexium 28 series is required for operation: LXM28.U20M3X. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
