Schneider Electric Foot Switch XPER911

Manufacturer: Schneider Electric
Designation: Foot Switch
Type: XPER911
Command Type: On or Off
With Protective Cover: No
With Locking: No
Material: Metal
With Protective Insulation: No
Color: Orange
Number of Switching Positions: 1
Number of Contacts as Normally Open: 2
Number of Contacts as Normally Closed: 2
Switching Function Latching: No
Suitable for Safety Functions: Yes
Rated Operating Current Ie at AC-15, 230 V: 3 A
Protection Class (IP): IP66
Protection Class (NEMA): Other
Width: 104 mm
Height: 104 mm
Depth: 172 mm

Schneider Electric Foot Switch XPER911: Additional Details

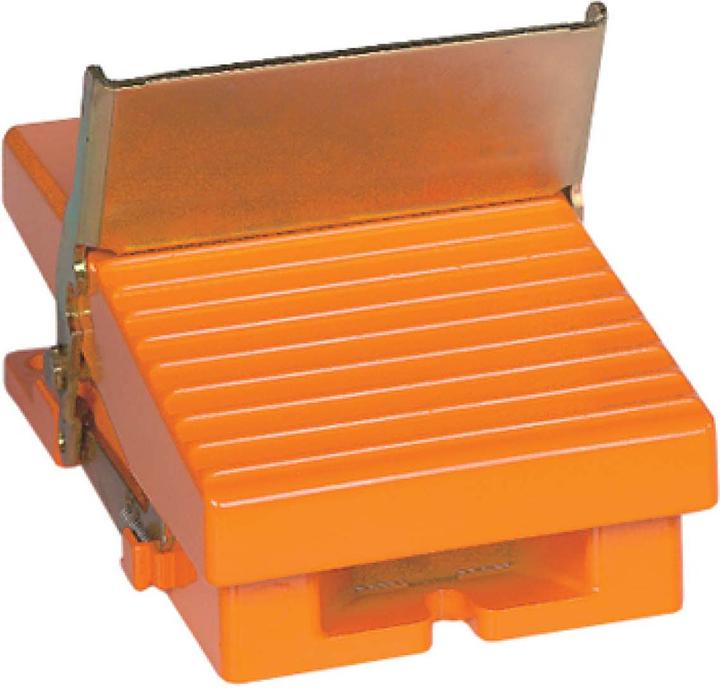

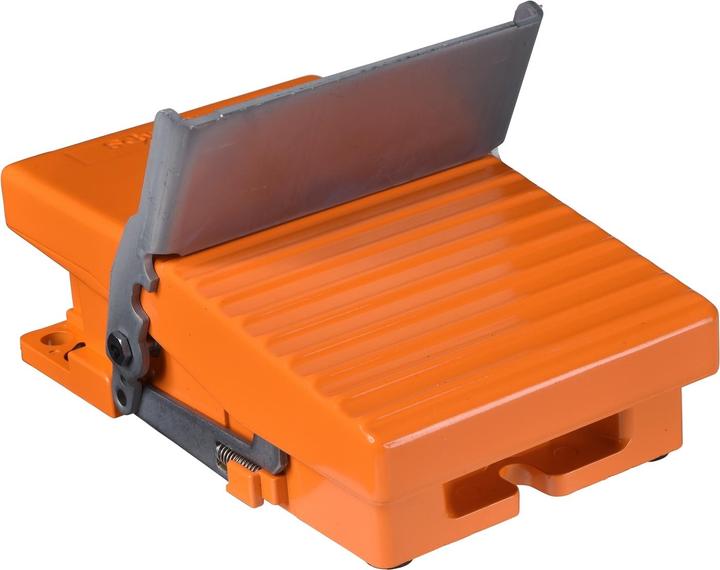

The Harmony foot switches XPE provide a convenient solution for turning industrial machines on or off with multiple operating modes such as momentary, toggle, or continuous operation. This foot switch, made of metal, is painted orange. It features a pedal for direct actuation. The auxiliary switches have 2 switching levels with 2 normally open and 2 normally closed contacts. Thanks to the high IP protection class and the wide operating temperature range, it is well-suited for harsh environmental conditions. The certifications and compliance with standards ensure its use in many countries. With the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
