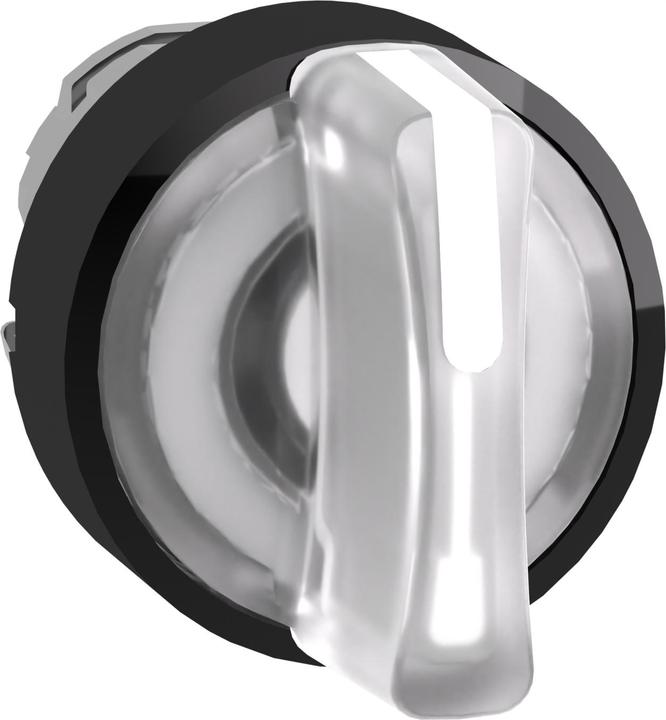

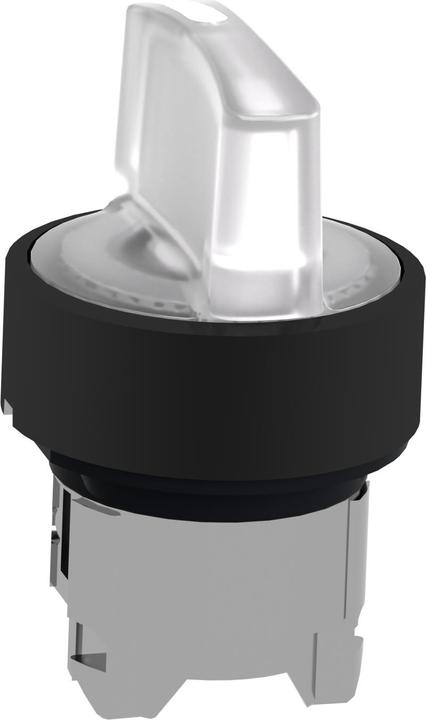

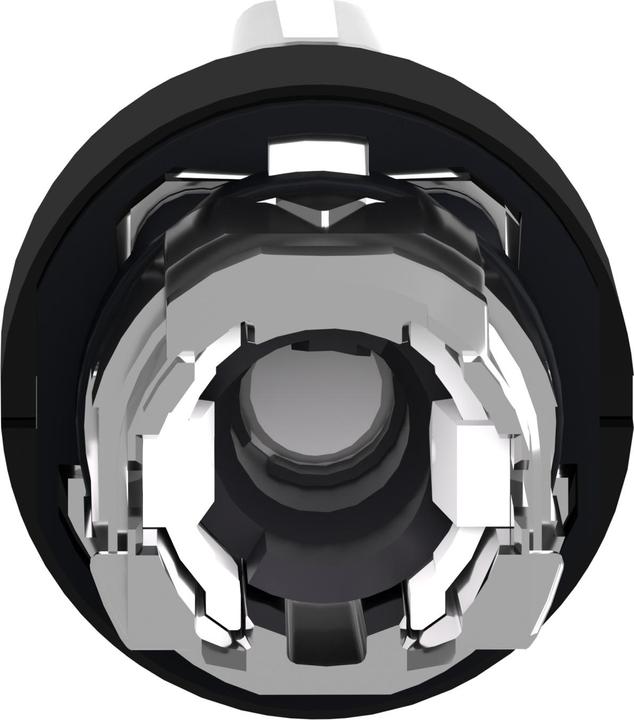

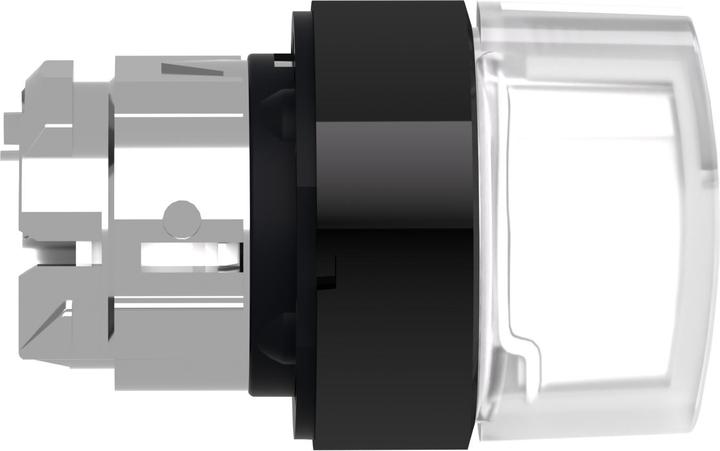

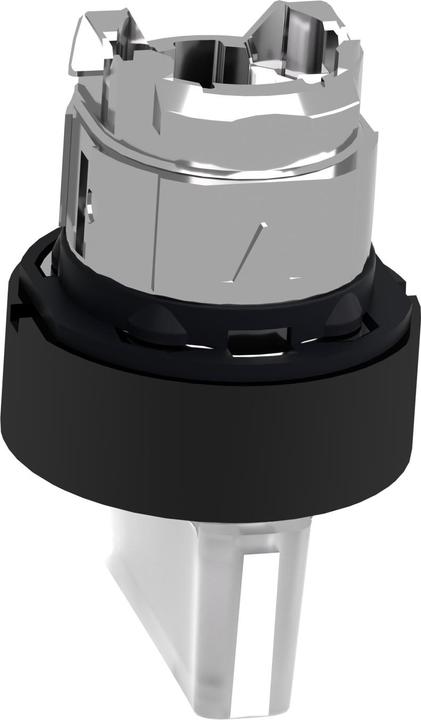

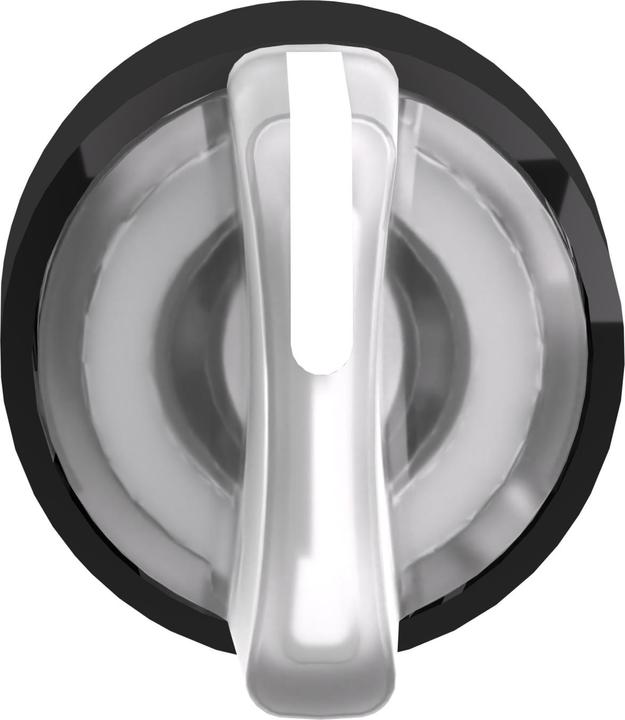

Schneider Electric Front Element White ZB4BK17137

Manufacturer: Schneider Electric
Description: White front element for illuminated selector switch
Type: ZB4BK17137
Number of switching positions: 3
Actuating element design: short rotary knob
Suitable for lighting: yes
Color of the actuating element: white
Color of the indicator light dome: white
Lens shape: round
Hole diameter: 22.5 mm
Switching function latching: no
Momentary: yes
With front ring: yes
Material of the front ring: metal
Color of front ring: black
Protection class (IP), front side: IP66
Protection class (NEMA): other

Schneider Electric Front Element White ZB4BK17137: additional details
The Harmony XB4/ZB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements, and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated selector switch in white is compatible with a universal LED with various supply voltages. This front element features 3 positions. The installation of this product takes place in a 22mm hole. The outer ring of the front element is black. Due to the numerous existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
