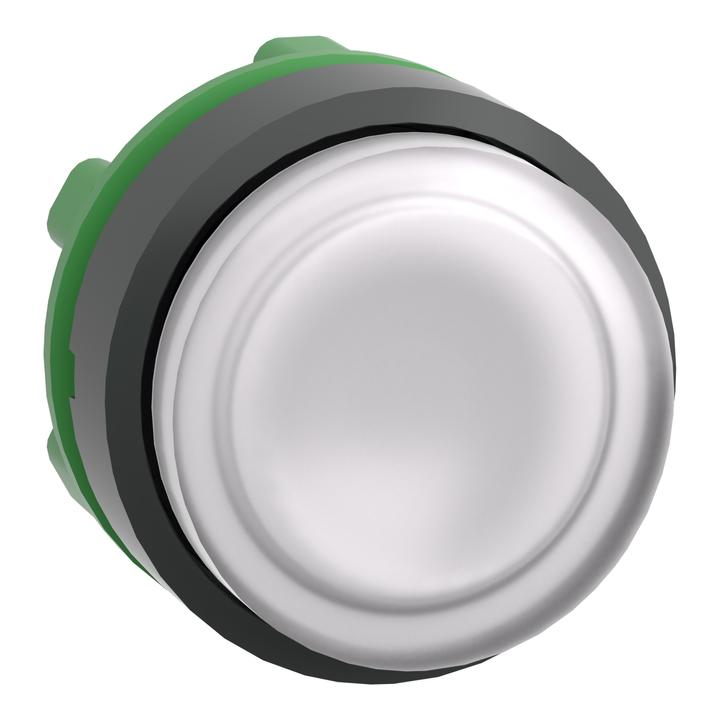

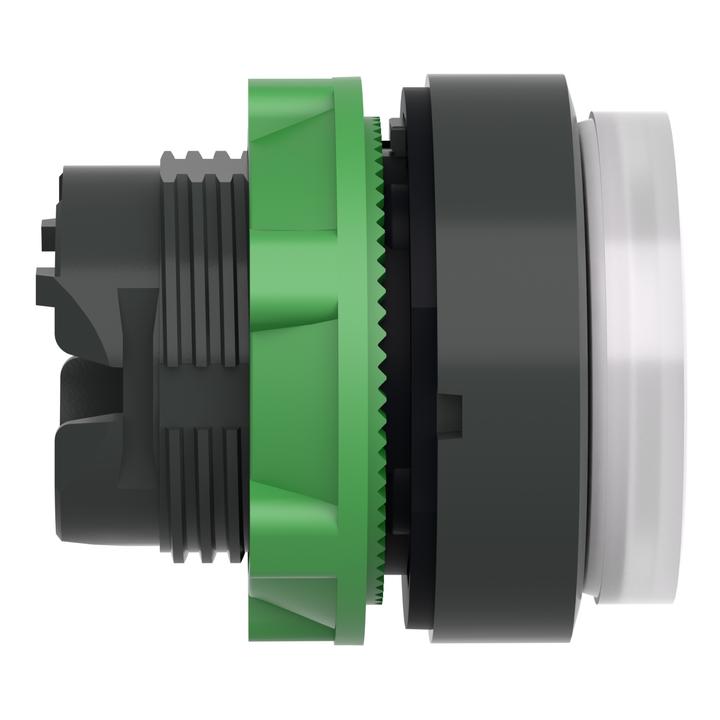

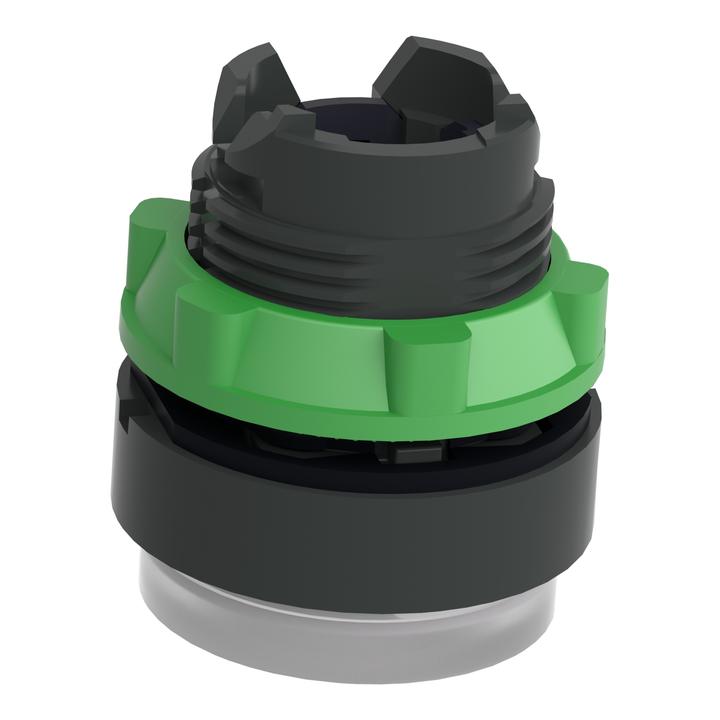

Schneider Electric Front Element Push Button ZB5AW113

Manufacturer: Schneider Electric
Description: Front element push button D 22mm, white
Type: ZB5AW113
Button color: white
Number of command positions: 1
Lens shape: round
Hole diameter: 22.5 mm
Opening width: 0 mm
Opening height: 0 mm
Button shape: high
Suitable for lighting: yes
With protective cover: no
Labeled: no
Switching function latching: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: other

Schneider Electric Front Element Push Button ZB5AW113: additional details
Front element for illuminated push buttons Harmony ZB5. Front white, bezel plastic, unlabeled. This illuminated push button head for integrated LED offers a versatile interface for controlling your machines. Dimensions (WxHxD) 29x29x33 mm, mounting diameter 22 mm, weight 0.018 kg. The clear color scheme and the touch of the protruding element make it visually distinguishable from a distance, minimizing errors in machine control. Mechanical lifespan 10,000,000 cycles. Shape of the head round, standard. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The modular plastic program with 22mm installation size combines easy installation, efficiency, modern design, flexibility with maximum robustness. Certifications according to RINA, DNV, CSA, UL listed, GL, BV, LROS (Lloyds Register of Shipping). Product standards according to JIS C 4520, GB 14048.5, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4. EAN: 3389110909821.
