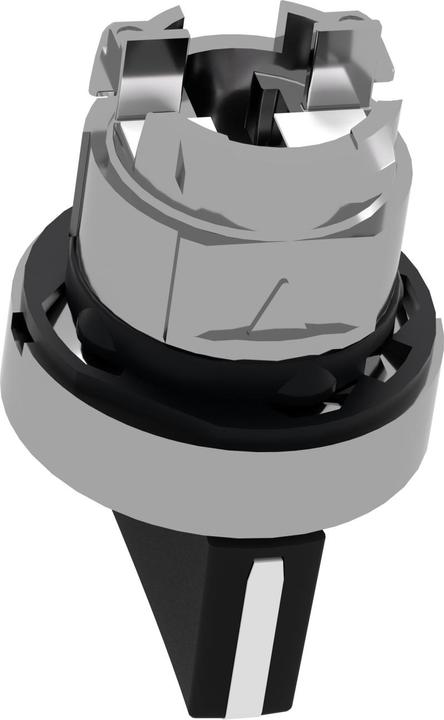

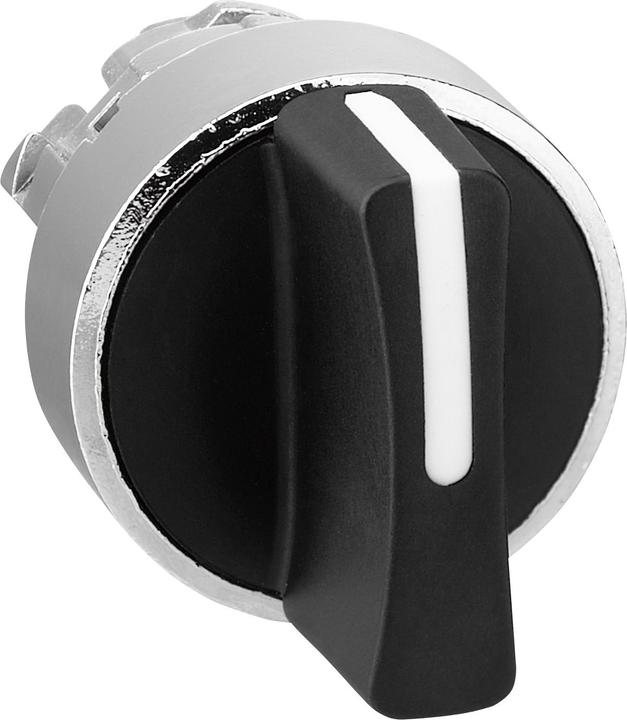

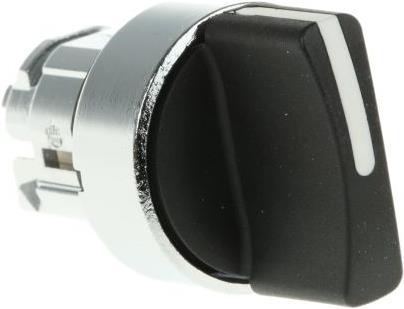

Schneider Electric Head for selector switch ZB4-BD7
Product details
The Harmony XB4/ZB4 series made of metal offers a wide range of 22 mm and 30 mm control and signaling devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Thanks to the modular design of the devices, all components can be purchased as individual elements, in assemblies, or as complete units. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This ergonomic selector switch front element in black features 3 positions and is right-clicking in the center. The front element is mounted in a 22 mm hole. The attachment is secured by a shock-resistant connection screw. To create a complete unit, this front element can be combined with a mounting flange as well as a variety of different auxiliary switches and accessories. In addition to high vibration resistance and a very long service life, the XB4/ZB4 series devices also stand out due to their extremely high possible ambient temperature. Due to the numerous existing product standards and certifications, they are suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
Colour | Black |
Switch + button type | Rotary switches |
Number of actuation levels | 3 x |
Width | 22 mm |
Diameter | 22 mm |
Item number | 9725913 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer no. | ZB4BD7 |
Release date | 24.9.2018 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Metal |
Switch + button type | Rotary switches |
Operating mode | Rotary knob |
Number of actuation levels | 3 x |
Mounting type | Screw fastening |
LED colour | without LED |
Protection type (IP code) | IP67, IP69K |
Switch + push-button Additional function | Acoustic feedback |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 22mm, 3 positions, Black, centre, Front element, Harmony XB4, Metal, Selector switch, Toggle switch |
Width | 22 mm |
Diameter | 22 mm |
Product Safety |
