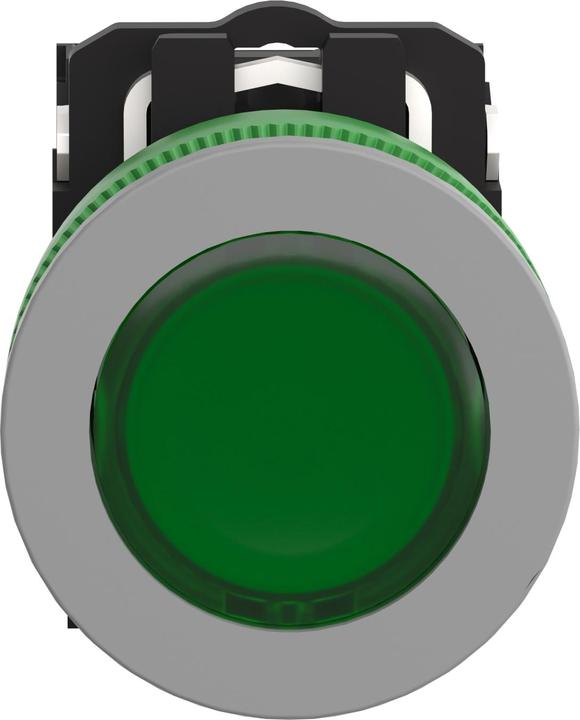

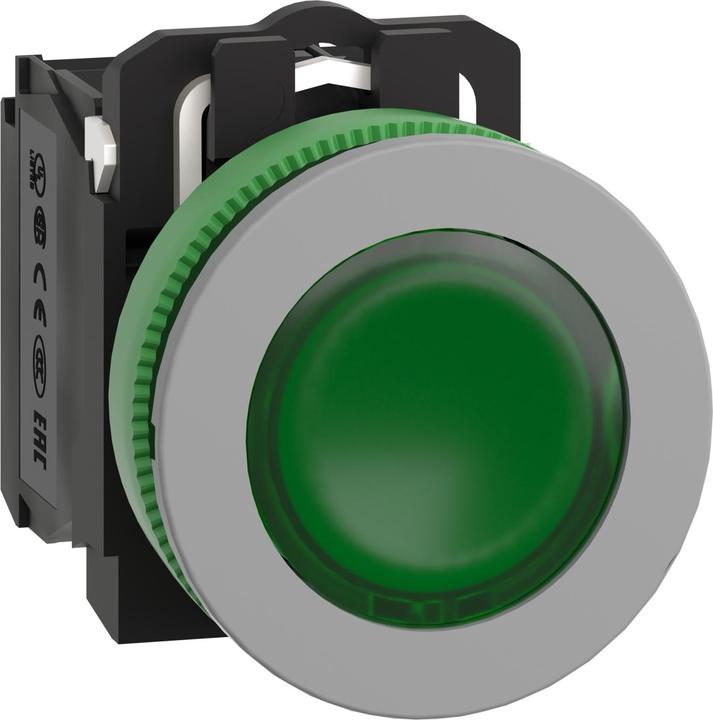

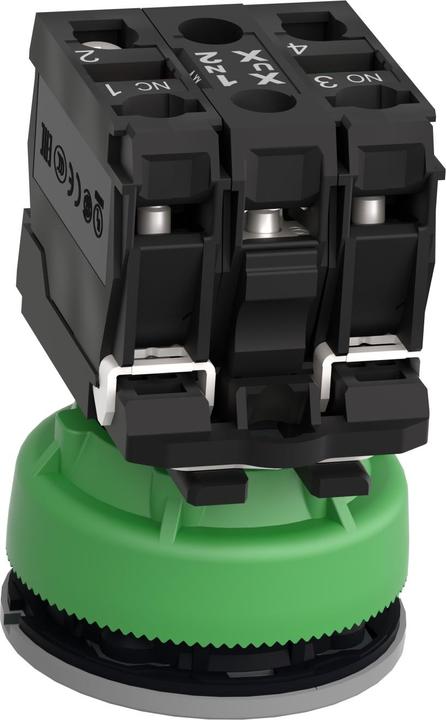

Schneider Electric Illuminated Push Button XB5FW33B5C0

Manufacturer: Schneider Electric
Description: Green illuminated push button, 30mm, 24V, 1NO+1NC
Type: XB5FW33B5C0
Number of command points: 1
Button design: flat
Button color: green
Lens shape: round
Hole diameter: 30.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 24 V
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

The illuminated selector switch made of plastic is a complete device with a 30mm installation size, Harmony XB5F series for flat installation. The color of the illuminated selector switch is green and it is suitable for 24V AC/DC. The color of the outer ring is gray. The modular Harmony series with a 30mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C.

Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3606489761462.
