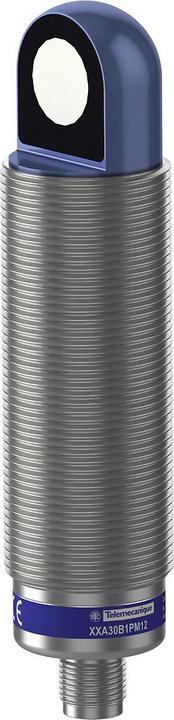

Schneider Electric M30 ultrasonic sensor angledMetal housing, SN=1M, PNP, M12 XXA30B1PM12
Price in EUR including VAT
free shipping
Schneider Electric Ultrasonic Sensor XXA30B1PM12
Manufacturer: Schneider Electric
Designation: Ultrasonic sensor
SN: 1M
Type: XXA30B1PM12
Electrical connection version: M12 connector
Switching output version: PNP
Version of switching function: Programmable/configurable
Blind zone: 155 mm
Width of sensor: 30 mm
Height of sensor: 30 mm
Length of sensor: 74.7 mm
Diameter of sensor: 30 mm
Adjustment method: Other
Measuring range length: 155 to 1000 mm
Protection class (IP): IP67
Max. output current: 100 mA
Output current: 100 mA
Ambient temperature: -25 to 70 °C
Supply voltage: 12 to 24 V
Relative repeatability: 0.1 %
Voltage type: DC
Synchronization possible: Yes
Material of the active surface of the sensor: Other
Material of the housing: Brass
Further details: Ultrasonic sensor with a 30 mm housing diameter and a 90° angled sensor head in metal design. Connection via M12 plug connection, range 1 m. PNP switching output.
Item number | 31386056 |
Manufacturer | Schneider Electric |
Category | Network accessories |
Manufacturer no. | XXA30B1PM12 |
Release date | 27.9.2022 |
Country of origin | USA |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | M12, PNP, Ultrasonic sensor SN=1M |
Length | 7.47 cm |
Height | 3 cm |
Width | 3 cm |
